YRT150P4 150*240*40mm YRT rotary table bearings

YRT150P4 150*240*40mm YRT rotary table bearings

YRT150P4 150*240*40mm YRT rotary table bearings
  • YRT150P4 150*240*40mm YRT rotary table bearings
  • YRT150P4 150*240*40mm YRT rotary table bearings
  • YRT150P4 150*240*40mm YRT rotary table bearings
  • YRT150P4 150*240*40mm YRT rotary table bearings
  • YRT150P4 150*240*40mm YRT rotary table bearings
  • YRT150P4 150*240*40mm YRT rotary table bearings
  • Bearing:YRT150P4
  • d:150mm
  • D:240mm
  • H:40mm
  • H1:26
  • C:12
  • D1:214
  • J:165
  • J1:225
  • Co:112KN
  • Cr:630KN
  • Weight:6.2KG
  • Brand:Monton
  • Packing:wooden case
  • Oringin:Luoyang
Inquiry Now


YRT150P4


bearing type Dimensions  fixing holesNumber of retaining   screws
dDHH1CD1JJ1inner   ringouter   ring
unit: mmd1d2aqtyd3qty
mmmm
YRT1501502404026122141652257116.2347332


bearing type Extraction   thread holeNumber of pitches X   angle of pitches

Screw tightening torqueBasic   load ratingLimiting speed

Bearing frictional torqueweight
axialradial
dynamic loadstatic   loaddynamic   loadstatic   load
MA2)CaCoaCrCorgrease
Gqtyqty×t

NmKNr/minNmKg
YRT150M8336×10°1411263056170320106.2

YRT rotary table bearings belong to an ultra-precision grade bearing, so the bearing raceway needs to be super-finished to meet the high requirements of customers. YRT rotary table bearings are also a kind of high-precision bearings that are commonly used. It is a professional bearing specially designed for turntables. Therefore, in many high-precision fields, such as medical equipment, CNC machine tools, and even high-precision instruments such as radar, it has its application.

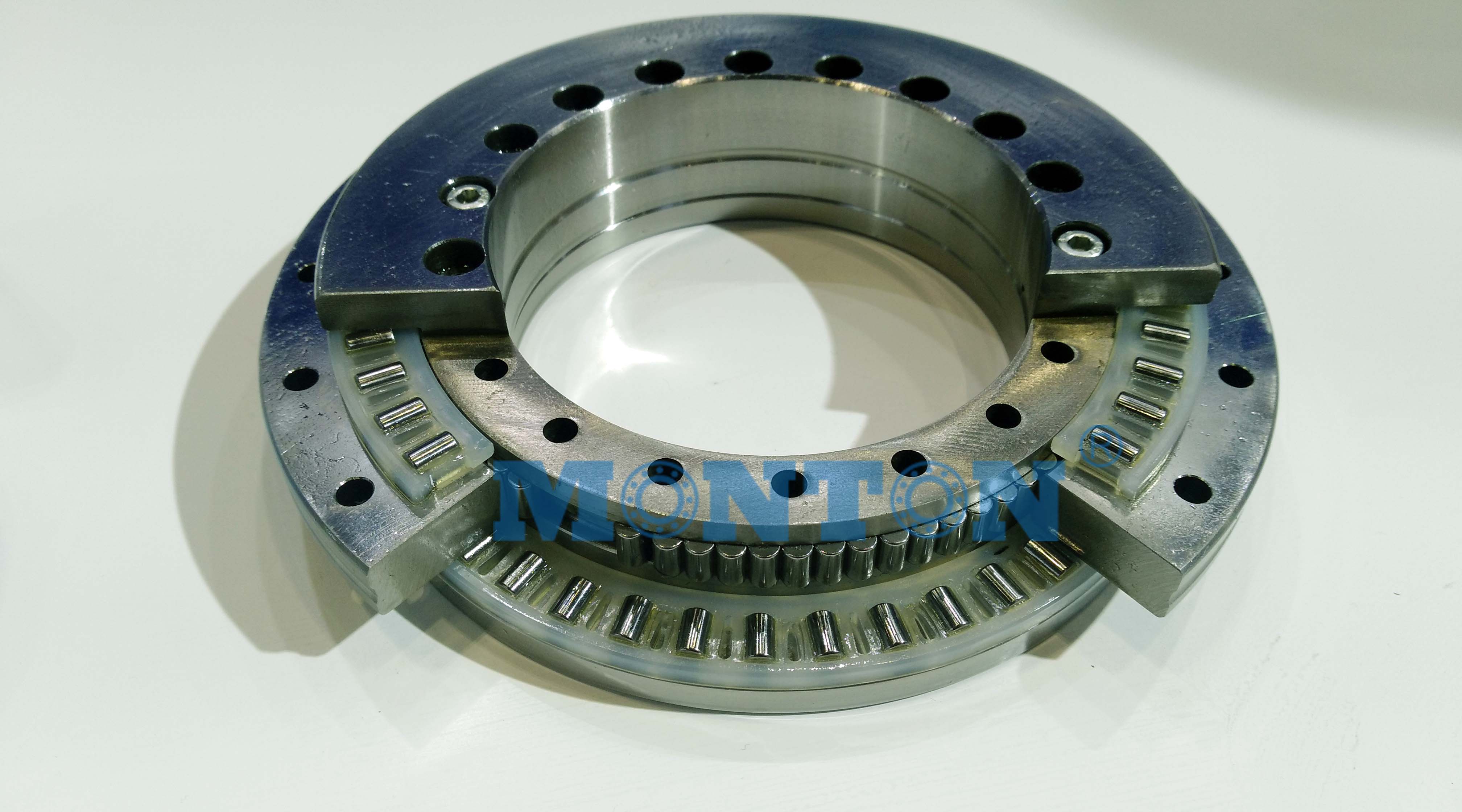

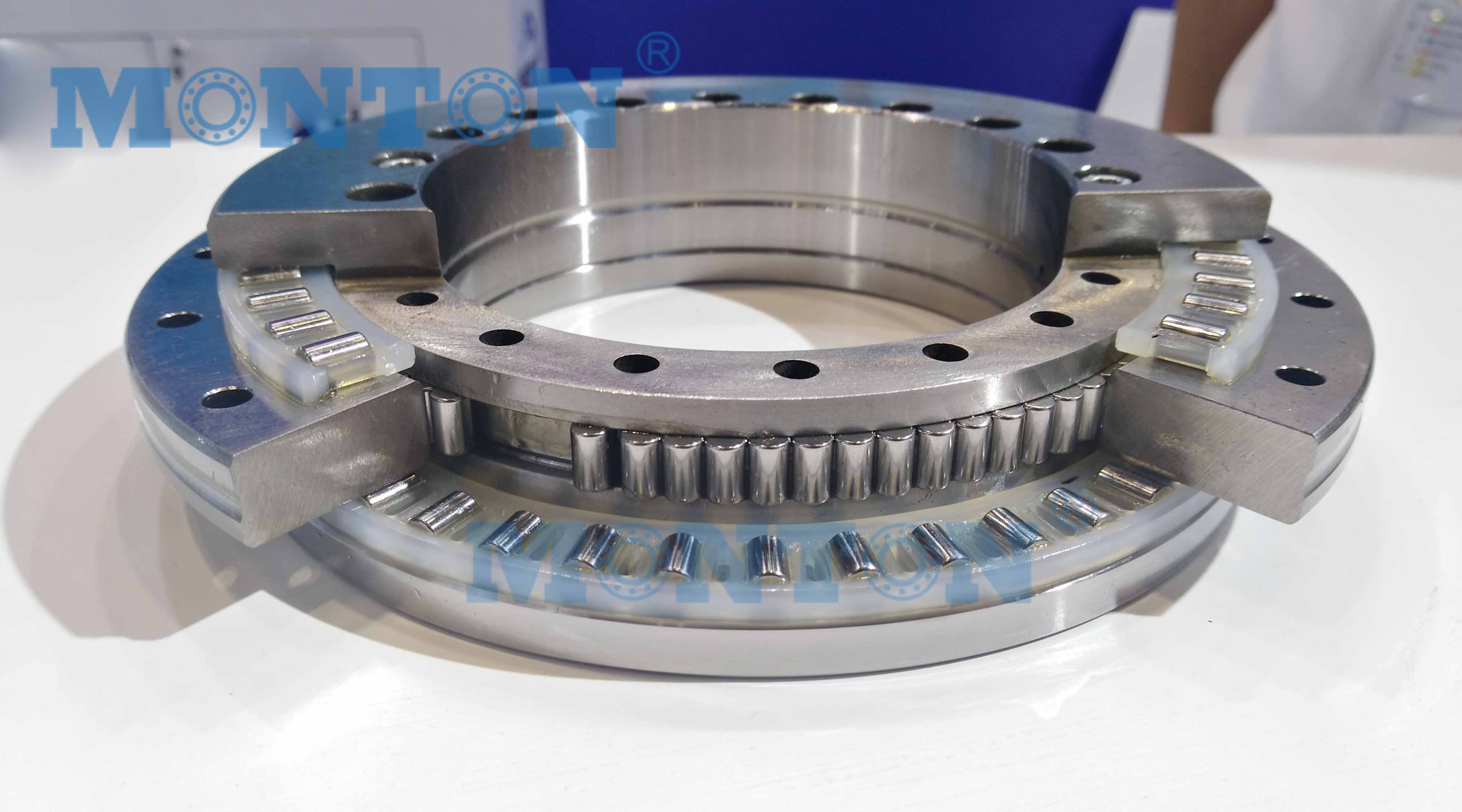

YRT rotary table bearings are composed of a centripetal race, a centripetal shaft ring, a thrust washer, two needle roller cage assemblies, and a centripetal cylindrical roller. Such bearings have high axial and radial load carrying capacity. The tilting stiffness is very high, and the bearings are also highly accurate, mostly used in rotary table, chuck and other bearing configurations. Because of the high precision, the YRT turntable bearing is also very demanding with the matching equipment parts.
