100BTR10S/100BTR10 100*150*45mm axial angular contact ball bearings for main spindles

100BTR10S/100BTR10 100*150*45mm axial angular contact ball bearings for main spindles

100BTR10S/100BTR10 100*150*45mm  axial angular contact ball bearings for main spindles
  • 100BTR10S/100BTR10 100*150*45mm  axial angular contact ball bearings for main spindles
  • Bearing:100BTR10S/100BTR10
  • d:100mm
  • D:150mm
  • 2B:45mm
  • Weight:1.39KG
  • Co:51.5KN
  • Cor:114KN
  • ermissible axial load:66.5KN
  • Effective load center:63.7KN
  • Grease:5200rpm
  • Oil:6800rpm
  • Brand:Monton
Inquiry Now

B7210-C-T-P5S-UL


axial angular contact ball bearings for main spindles

Bearing                 Dimensiones        (KN)
 (mm)min-1
(mm)rr1Basic Loading RatingsPermissible   axial loadEffective   load center  Limiting   speeds rpmWeight
Dd2BMinMin

KNa GreaseOilKg
100BTR10S10015045.01.51.051.5114.066.563.7520068001.399
100BTR10H10015045.01.51.057.0600076001.307


Features

       For the main spindles of machine tools, good high speed performance and high rigidity are required for the ball bearings used in combination with double-row cylindrical roller bearings. For these applications, to allow selection appropriate for the characteristics of the machine, we provides three types of bearings.

      All these bearings have special outer ring outside diameter tolerances (P4A Class and P2A Class) to provide clearance between the outer ring periphery and housing bore in order to avoid any load. our ROBUST series high-speed angular contact thrust ball bearings are capable of high-speed operations while maintaining high rigidity. Ball diameter and number of balls are the same as TAC type bearings. BTR type bearings have a 40° contact angle, and BAR type bearings have a 30° contact angle. The result is superior high-speed performance that minimizes heat generation.

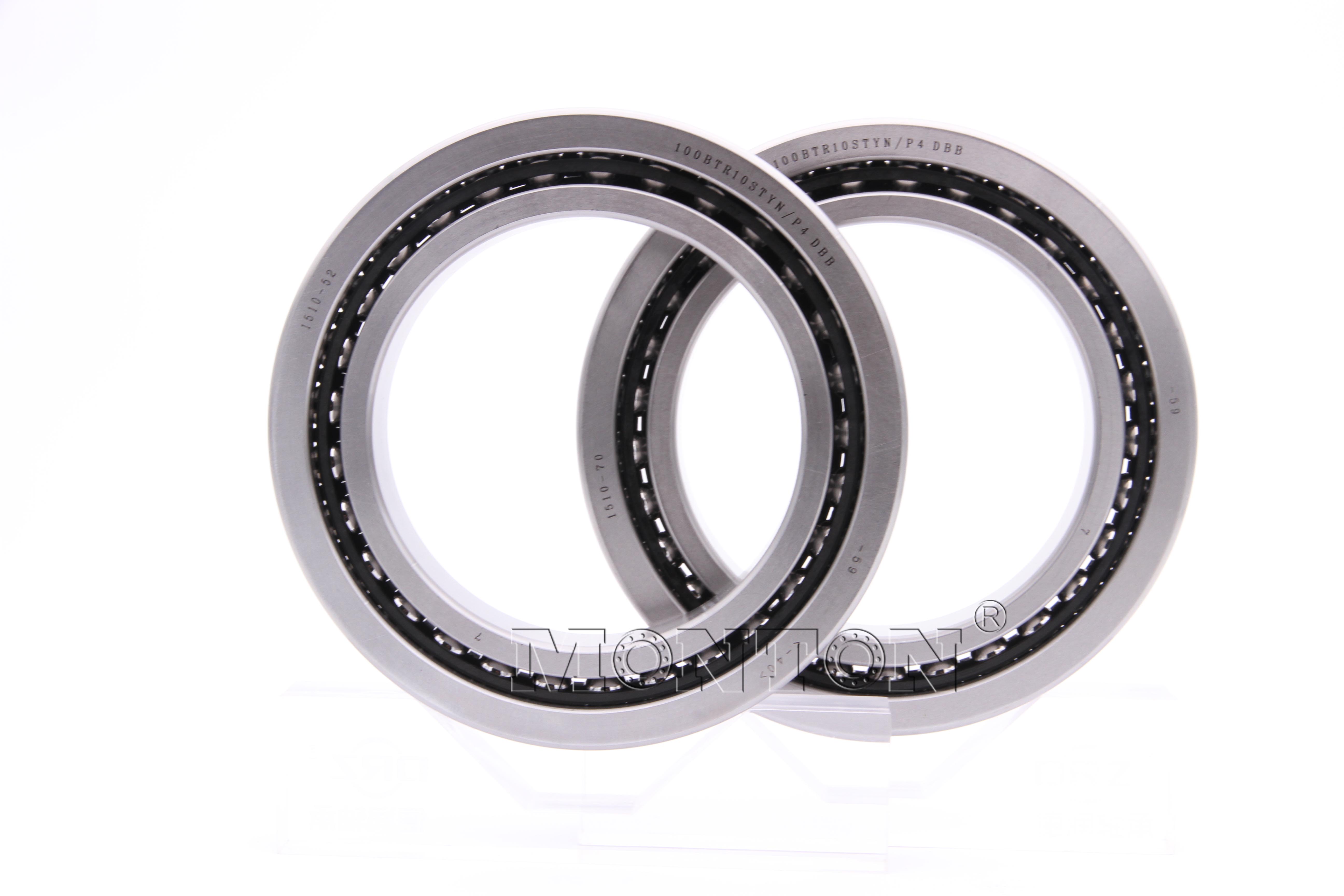

100BTR (17).JPG
