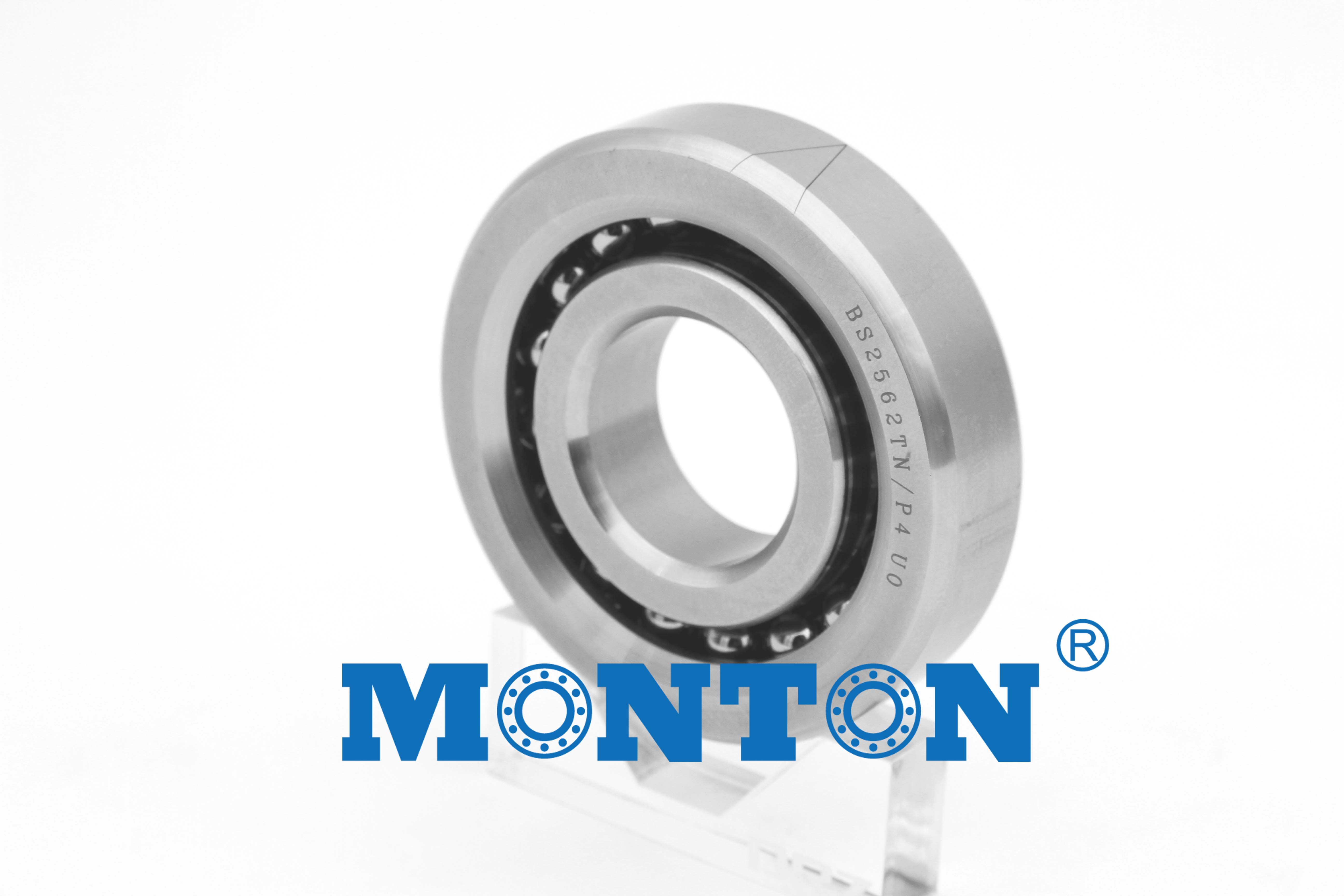

25TAC62CSUHPN7C 25*62*15 Precision Ball Screw Support Bearing

25TAC62CSUHPN7C 25*62*15 Precision Ball Screw Support Bearing

25TAC62CSUHPN7C 25*62*15 Precision Ball Screw Support Bearing
  • 25TAC62CSUHPN7C 25*62*15 Precision Ball Screw Support Bearing
  • 25TAC62CSUHPN7C 25*62*15 Precision Ball Screw Support Bearing
  • Bearing:25TAC62BSUC10PN7C
  • d:25
  • D:62
  • B:15
  • r:1 Min
  • r1:1 max
  • Ca:29.9N
  • Lub.:5200
  • Oil.:6900
  • Rigidity:850 N/μm
  • Torque:0.15N・m
  • Weight:0.25KG
  • Brand:Monton
  • Application:Machine tool Ball Screw Support
Inquiry Now

25TAC62BSUC10PN7B


BearingsDemension
    mm
Load Ca (N)Rotation
    min-1
Stiffness (DB,DF)   (N)Rigidity   (DB,DF)
    (N/μm)
Torque
    (Nm)
Weight
dDBr

Min
r1
    Max
Lub.Oil.HHHKG
25TAC62CBS256225621510.629.95,2006,9002,2808500.150.252


Angular contact ball bearing


 1.Anglular contact ball bearing steel balls and inside and outside the points of contact with the circle attachment radial into a point of view. Contact Angle generally divided into 15 °, 30 °, 40 °, respectively for the letter C, A, B says, special production contact Angle for 25 ° of these bearings, with the A5 said. Angle contact ball bearing main bear big one-way axial load, the greater the contact Angle, the greater the ability to bear a heavy load. Maintains a material with a steel, brass or engineering plastic, forming a way to have a press or turning, depending on the bearings form or conditions of use different and choose. There are other combined angular contact ball bearing, double row angular contact ball bearing and four-point contact ball bearing.


2.Angle contact ball bearings are widely used in mechanical industry,like in various machinery such as metallurgic machinery,mining machinery,paper making machinery,exile machinery,etc.



Specification


Angular contact thrust ball bearing for ball screw support(machine tool applications)


Ball screw Angle contact ball bearing  25TAC62BSBC10PN7A  bearing

25---the size of the inner diameter (mm)

TAC---thrust Angle contact ball bearing, the contact Angle is 60 °

62---the size of the outer diameter (mm)

B---internal style

DF---a combination

SU---free combination (single)

DU---free combination (2 column)

DB---back-to-back combination

DF---face to face combination

DT---tied for combination

DBD DFD DTD---3 columns combination

DBB DFF DBT DFT DTT---4 columns combination

C10---standard preloaded

C9---light preloaded | low torque style

PN7A---standard precision (equivalent to ISO4 class)

PN7B---inside outside diameter size difference special control precision (equivalent to ISO4 grade, SU combination special).
