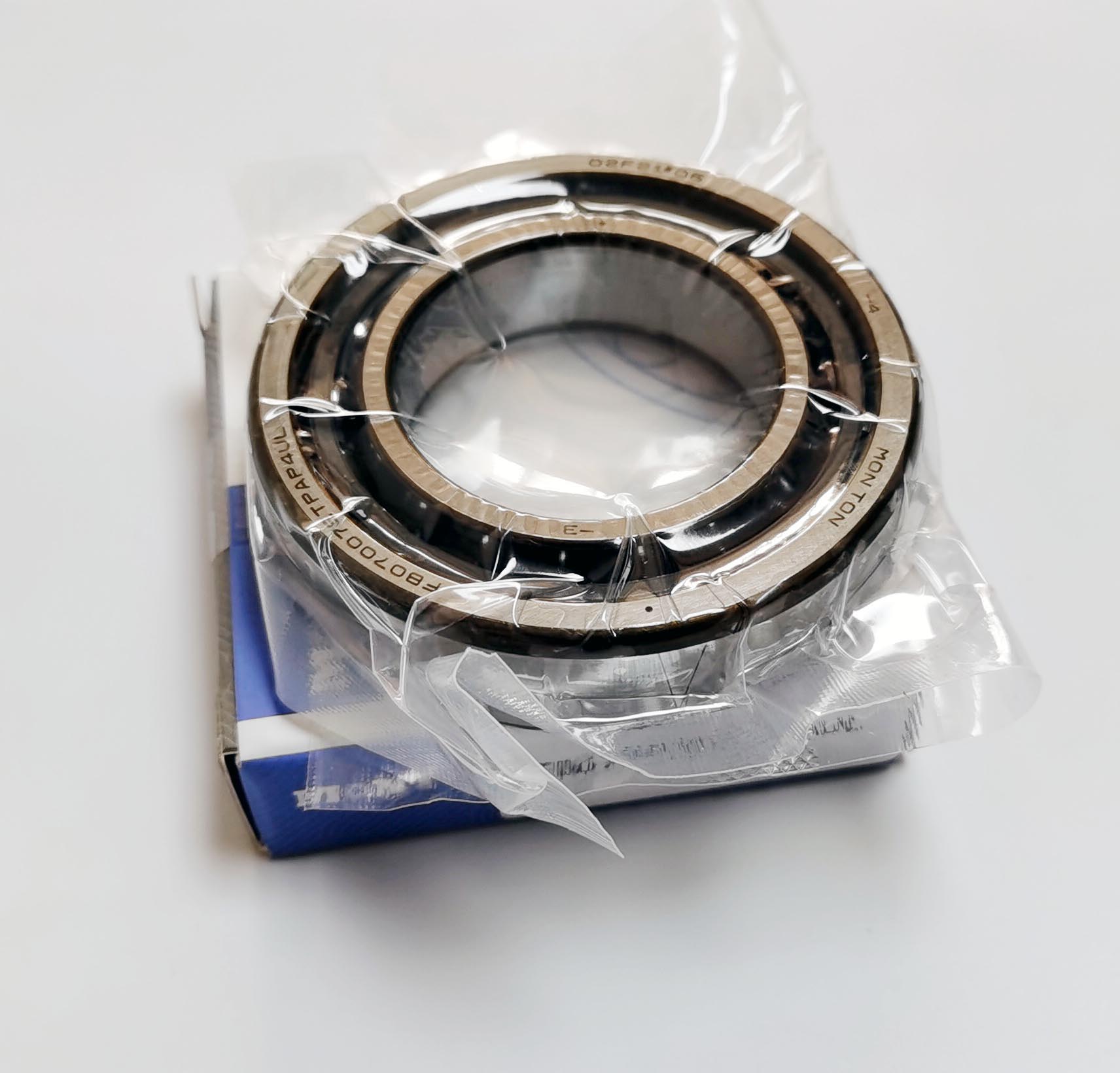

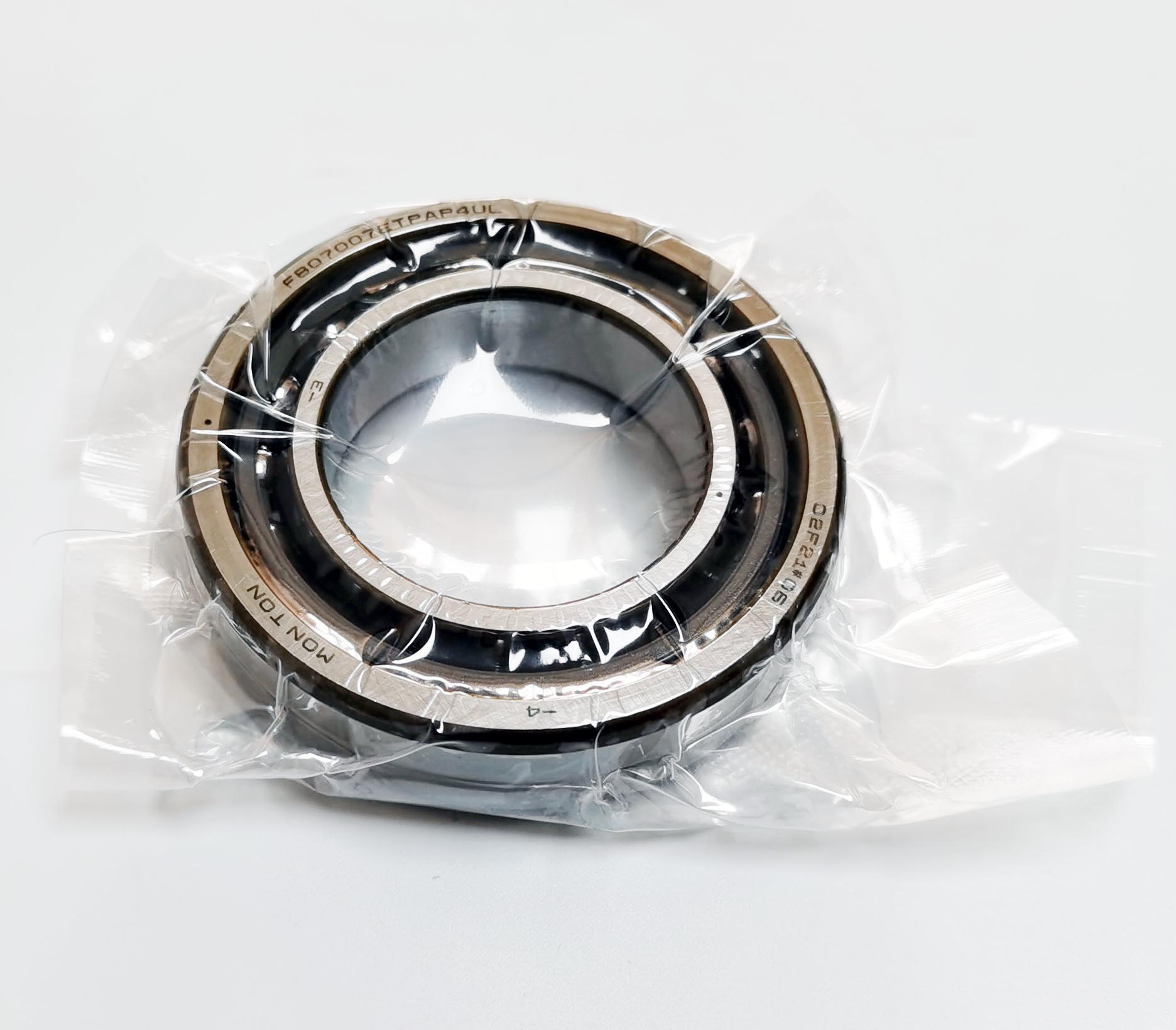

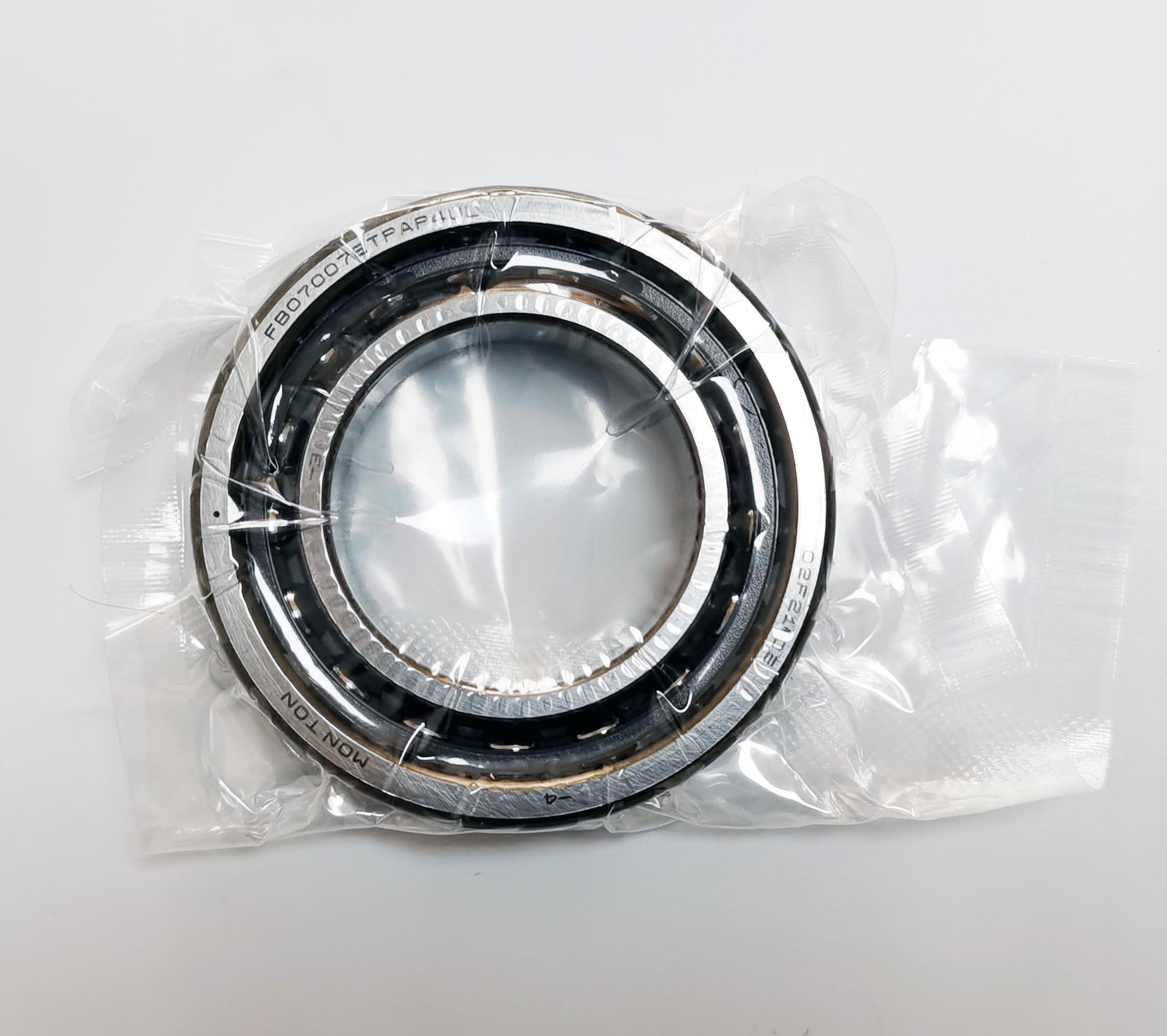

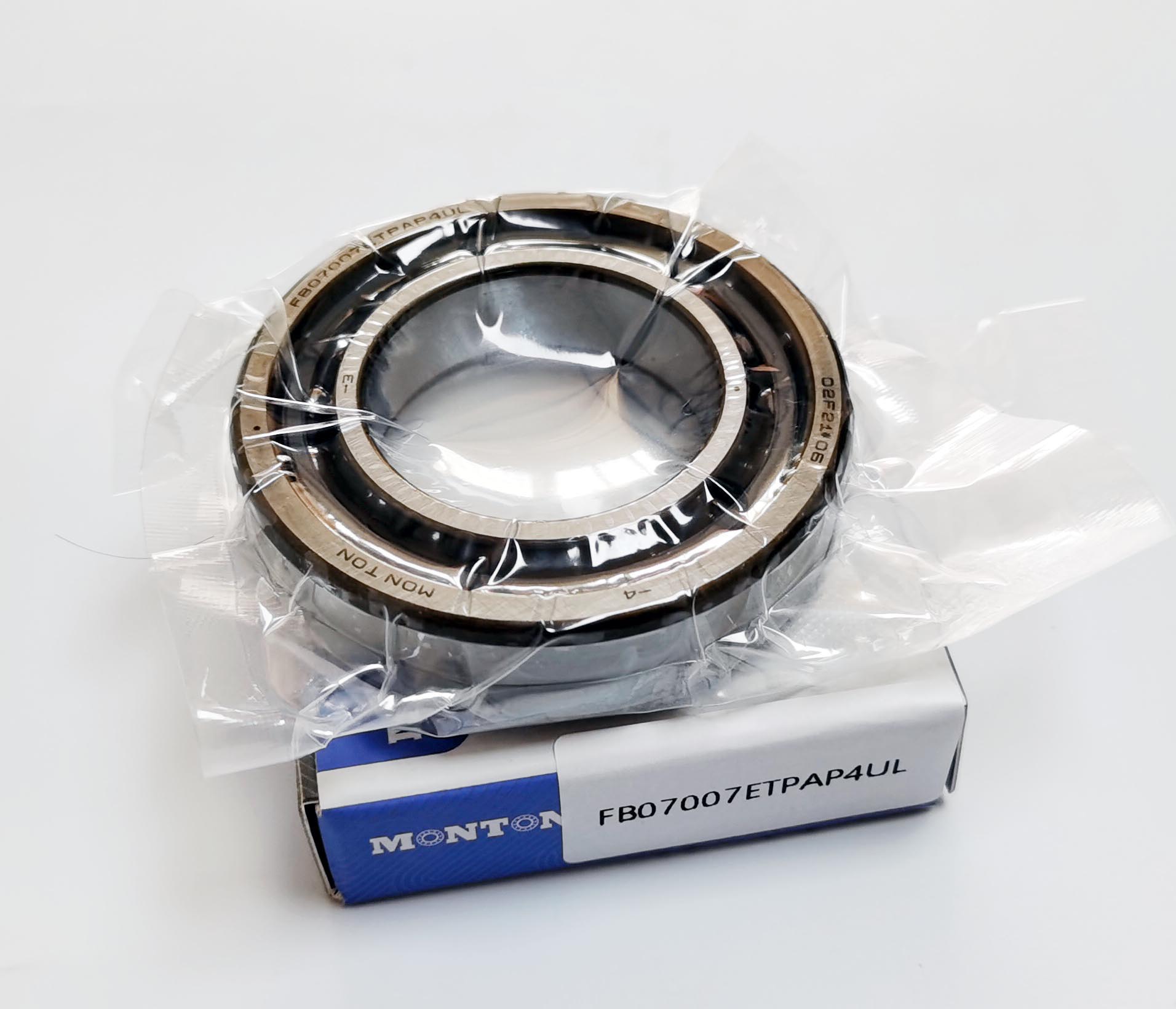

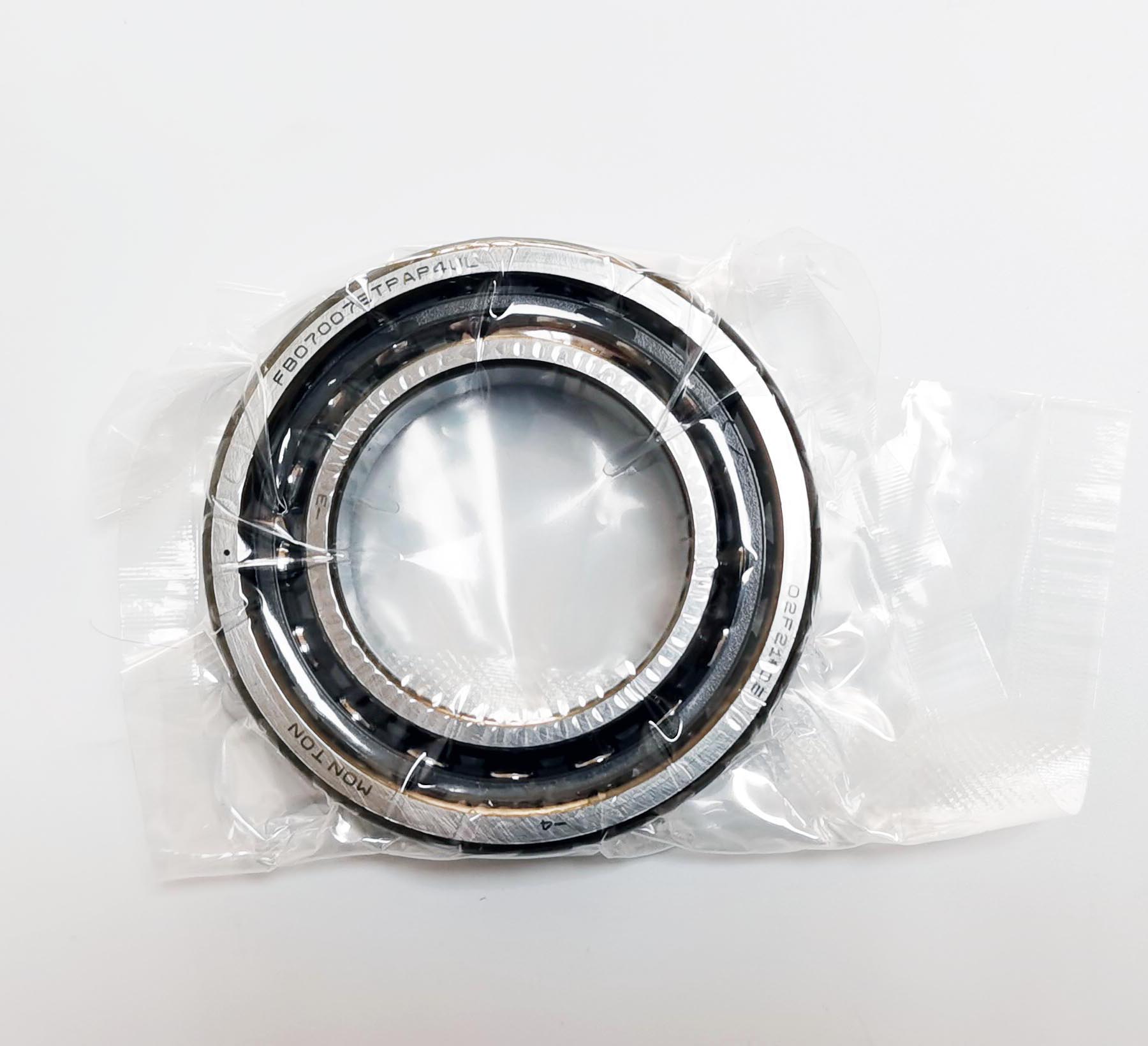

7007ETPAP4UL Ultra Slim Four Point Angular Contact Bearing for Smart Robot Arm
7007ETPAP4UL Ultra Slim Four Point Angular Contact Bearing for Smart Robot Arm
- Bearing:7007ETPAP4UL
- d:35mm
- D:62mm
- B:14mm
- C:15.6kN
- Co:9.5kN
- speed for grease:24 000 r/min
- Attainable speed for oil-air lubrication:36 000 r/min
- Contact angle:15 °/25 °
- Number of balls:16pcs
- Mass:0.15KG
- Brand:MONTON
- Packing:Single box
- Delivery:7 days
- Price:Welcome inquiry
7007ETPAP4UL Ultra Slim Four Point Angular Contact Bearing
| Bearing Code | Dimensions | Preloading Force N | Unloading Force | Axial Rigidity | Weight | ||||||||||
| FV | KaE | Sa | |||||||||||||
| d | D | B | rsmin | r1smin | L | M | H | L | M | H | L | M | H | kg | |
| mm | mm | mm | N/µm | ||||||||||||
| B7007C.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 97 | 333 | 697 | 303 | 1132 | 2548 | 38.7 | 67.8 | 99.5 | 0.15 |
| B7007E.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 136 | 518 | 1116 | 400 | 1577 | 3525 | 88.4 | 146.9 | 202.1 | 0.15 |
| HCB7007C.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 46 | 177 | 382 | 140 | 574 | 1312 | 32.2 | 56.2 | 80.5 | 0.13 |
| HCB7007E.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 54 | 255 | 581 | 159 | 767 | 1789 | 72.4 | 126.2 | 173.3 | 0.13 |
| XCB7007C.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 46 | 177 | 382 | 140 | 574 | 1312 | 32.2 | 56.2 | 80.5 | 0.13 |
| XCB7007E.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 54 | 255 | 581 | 159 | 767 | 1789 | 72.4 | 126.2 | 173.3 | 0.13 |
| HS7007C.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 32 | 95 | 190 | 96 | 300 | 632 | 27.4 | 43.1 | 59.5 | 0.17 |
| HS7007E.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 51 | 154 | 308 | 147 | 453 | 926 | 67.8 | 101.5 | 132.7 | 0.17 |
| HC7007C.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 22 | 66 | 131 | 66 | 205 | 424 | 26.9 | 41.3 | 55.7 | 0.17 |
| HC7007E.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 36 | 107 | 214 | 105 | 316 | 642 | 68.5 | 100.6 | 130.2 | 0.17 |
| XC7007C.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 22 | 66 | 131 | 66 | 205 | 424 | 26.9 | 41.3 | 55.7 | 0.17 |
| XC7007E.T.P4S | 35 | 62 | 14 | 1.00 | 1.00 | 36 | 107 | 214 | 105 | 316 | 642 | 68.5 | 100.6 | 130.2 | 0.17 |
Super-precision angular contact ball bearings for shaft diameters from 6 to 360 mm. Application requirements vary, and as a result, the assortment of super-precision angular contact ball bearings includes four ISO dimension series, in numerous executions. The wide selection of designs and variants enables them to be incorporated into virtually every machine tool application as well as other applications where precision bearings are required.
