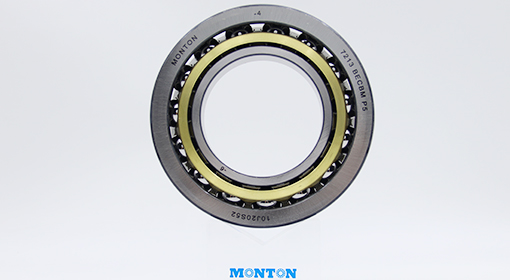

7213BECBM Angular contact ball bearings
7213BECBM Angular contact ball bearings
7213BECBM Angular contact ball bearings
- Model:7213BECBM
- d:65mm
- D:120mm
- B:23mm
- Contact angle:40°
- Ring Material:Brass cage
- Brand:MONTON
- Basic dynamic load rating C:69.5KN
- Basic static load rating Co:57KN
- Weight:1.09KG
- Delievry:7 days
- Packgae:Single box
Name | Angular contact ball bearings |
Brand | MONTON |
Model | 7213BECBM |
Contact angle | 40° |
rmin | 1.5mm |
Bore diameter | 65mm |
Outside diameter | 120mm |
B(width) | 23mm |
Ring Material | Gcr15 Bearing steel |
Cage Material | Brass |
Basic dynamic load rating C | 69.5KN |
Basic static load rating Co | 57KN |
Fatigue load limit Pu | 2.45KN |
Reference speed | 6 700 r/min |
Limiting speed | 9 000 r/min |
Sealed | Open/Sealed |
Row | Single row |
Weight | 1.09KG |
Quality standard | ISO9001: 2000/SGS |
Package | single box |
Original | Luoyang |
Service | OEM |
Delivery date | Accordingly |
Application | Multi-axis drills such as machine tools |
