AGV slewing bearings for Automated guided vehicle

AGV slewing bearings for Automated guided vehicle

AGV slewing bearings for Automated guided vehicle
  • AGV slewing bearings for Automated guided vehicle
  • AGV slewing bearings for Automated guided vehicle
  • AGV slewing bearings for Automated guided vehicle
  • AGV slewing bearings for Automated guided vehicle
  • AGV slewing bearings for Automated guided vehicle
  • AGV slewing bearings for Automated guided vehicle
  • Name:AGV slewing bearings
  • d:
  • D:
  • B:
  • Co:
  • Ca:
  • Weight:
  • Brand:Monton
  • Origin:Luoyang
  • MOQ:1PCS
  • Price:Ask
  • Delivery:35 days
  • Packing:wooden case
Inquiry Now

What Is an Automatic Guided Vehicle?

There are several types of AGVs. These include:

Automated carts - The simplest kind of AGV with minimal features for lowest cost implementation.

Unit load AGVs - Individual vehicles that transport loads (typically pallets, bins, carts or bundles) on forks or on the AGV’s deck. Roll-handling AGVs specifically handle heavy rolls of steel or paper.

Tugger AGVs – Powered units pulling a series of non-motorized trailers that each carries a load.

Automated forklift AGVs - An existing forklift truck whose controls have been converted to allow unmanned operation

Automatic Guided Vehicle application:

Assembly Line

AssemblyTBX1_200pxLow profile and custom designed vehicles provide improved ergonomics and are designed to operate as the assembly production line.



Conveyor Vehicles

Dual-Inline-ConveyorTransbotics automatic guided conveyor style vehicles come in various sizes and load capacities. This allows the AGV to pickup and deliver many types of material such as pallets, drums, skidded items, totes and boxes from standard conveyor lines, palletizing cells, finished good lines and deliver to stretch wrappers, unload stations, shipping or warehousing.



Custom Engineered AGV Vehicles

Custom-Conveyor-Lift-DeckWe offer standard as well as Tailor-Made™ AGV Systems.



Heavy Load Transport

liftdeckAGV_200pxHeavy capacity vehicles provide safe, reliable movement of large or cumbersome loads.



Fork Lift & Roll Handling Vehicles

agvforklifticonTransbotics Forklift vehicles are designed to replace manually driven forklift trucks and pallet hand trucks. The vehicles can move a variety of items including pallets and skidded items with various load weights. Fork Style AGVs are used in almost every industry, including aerospace & defense, automotive  and tier one supplier, textiles, ceramics, chemical processing, food & beverage, warehousing, newsprint & publishing, microelectronics, plastics, primary metals and recycling.



Tuggers

TuggerTuggers are offered for light or heavy duty applications. Tugger AGVs are used in almost every industry, including aerospace & defense, automotive  and tier one supplier, textiles, ceramics, chemical processing, food & beverage, newsprint & publishing, microelectronics, plastics, primary metals and recycling.

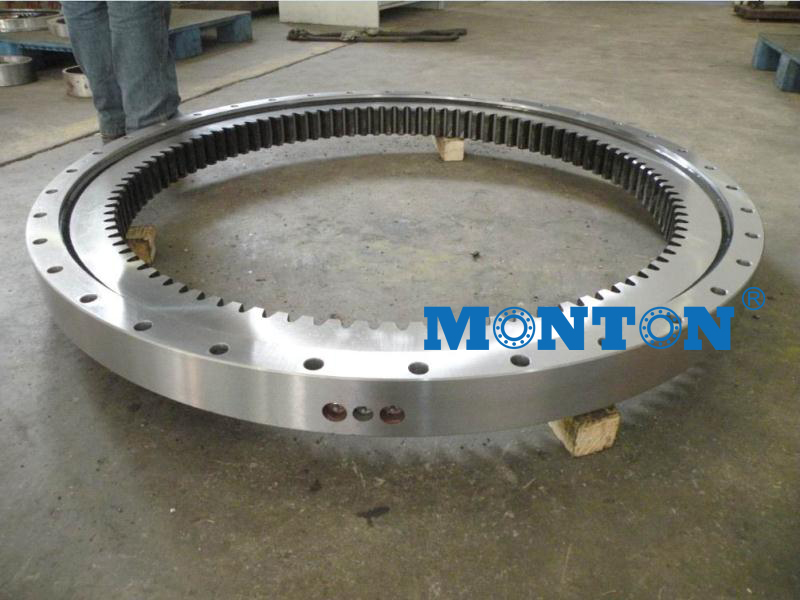

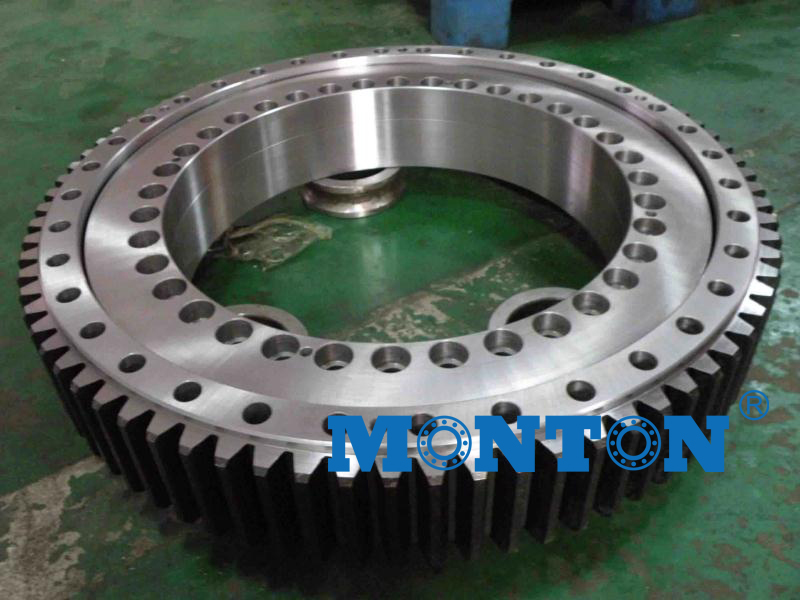

Automated guided vehicle slewing bearings

Slewing bearings comprise an inner ring and an outer ring, one of which usually incorporates a gear. Together with attachment holes in both rings, they enable an optimized power transmission with a simple and quick connection between adjacent machine components. The bearing raceways, in conjunction with the rolling elements and cages or spacers, are designed to accommodate loads acting singly or in combination, and in any direction.

monton application engineering service

Selecting the appropriate slewing bearing can be a challenge, particularly if there are stringent technical, reliability or economic demands. In these cases, for example, monton application engineering service can provide advanced calculations and simulations utilizing state-of-the-art analyse methods to optimize and validate the best design to meet the customer requirements.

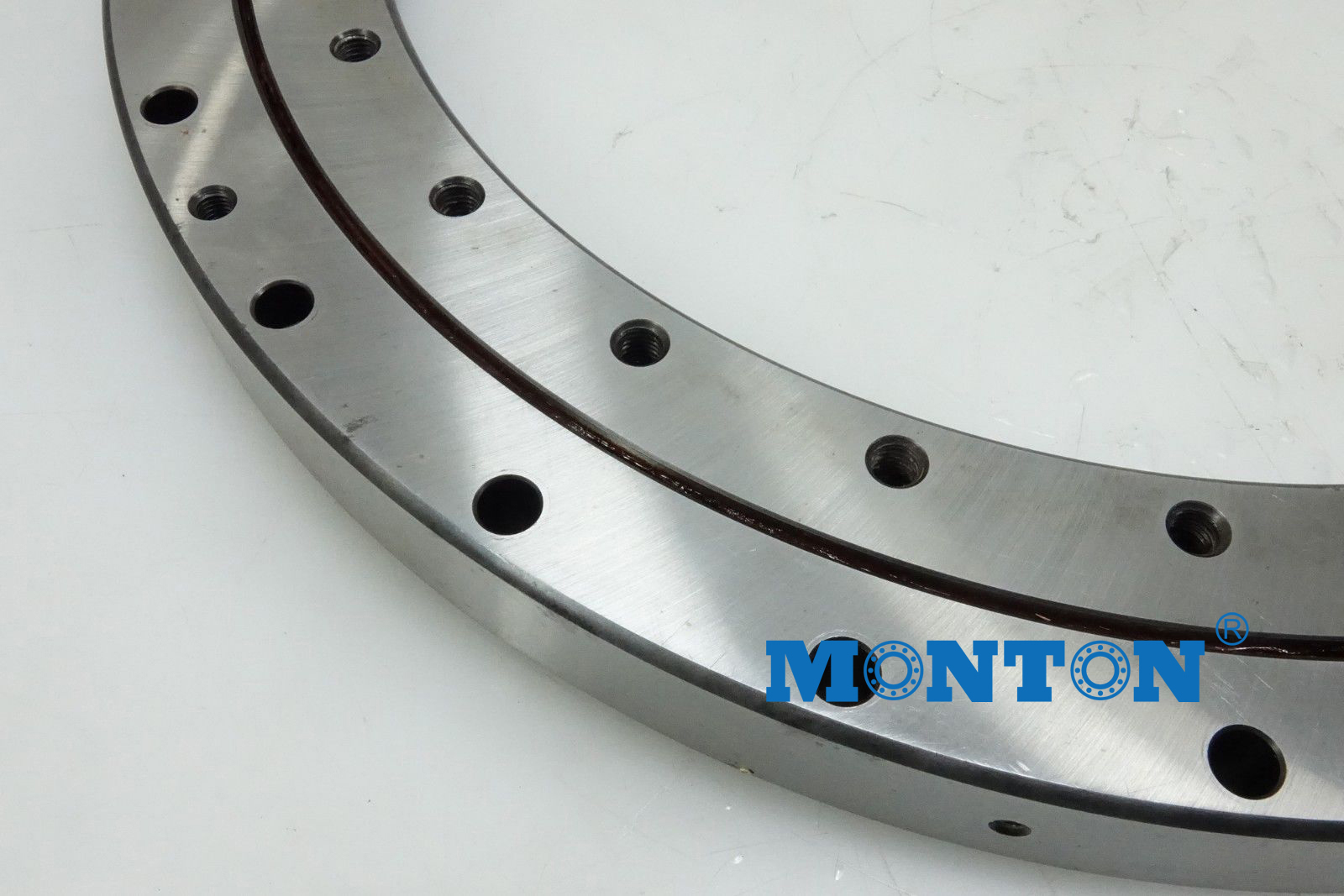

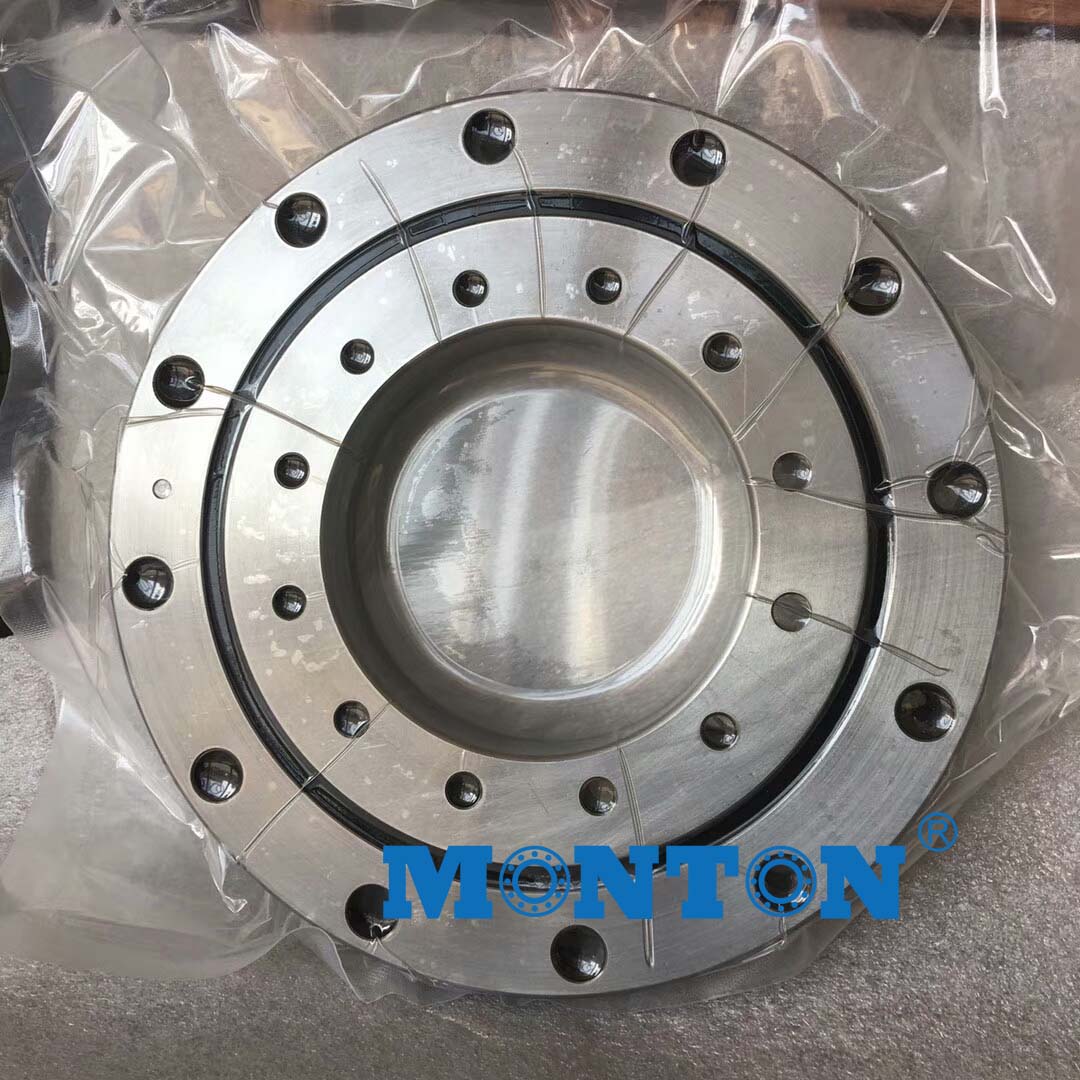

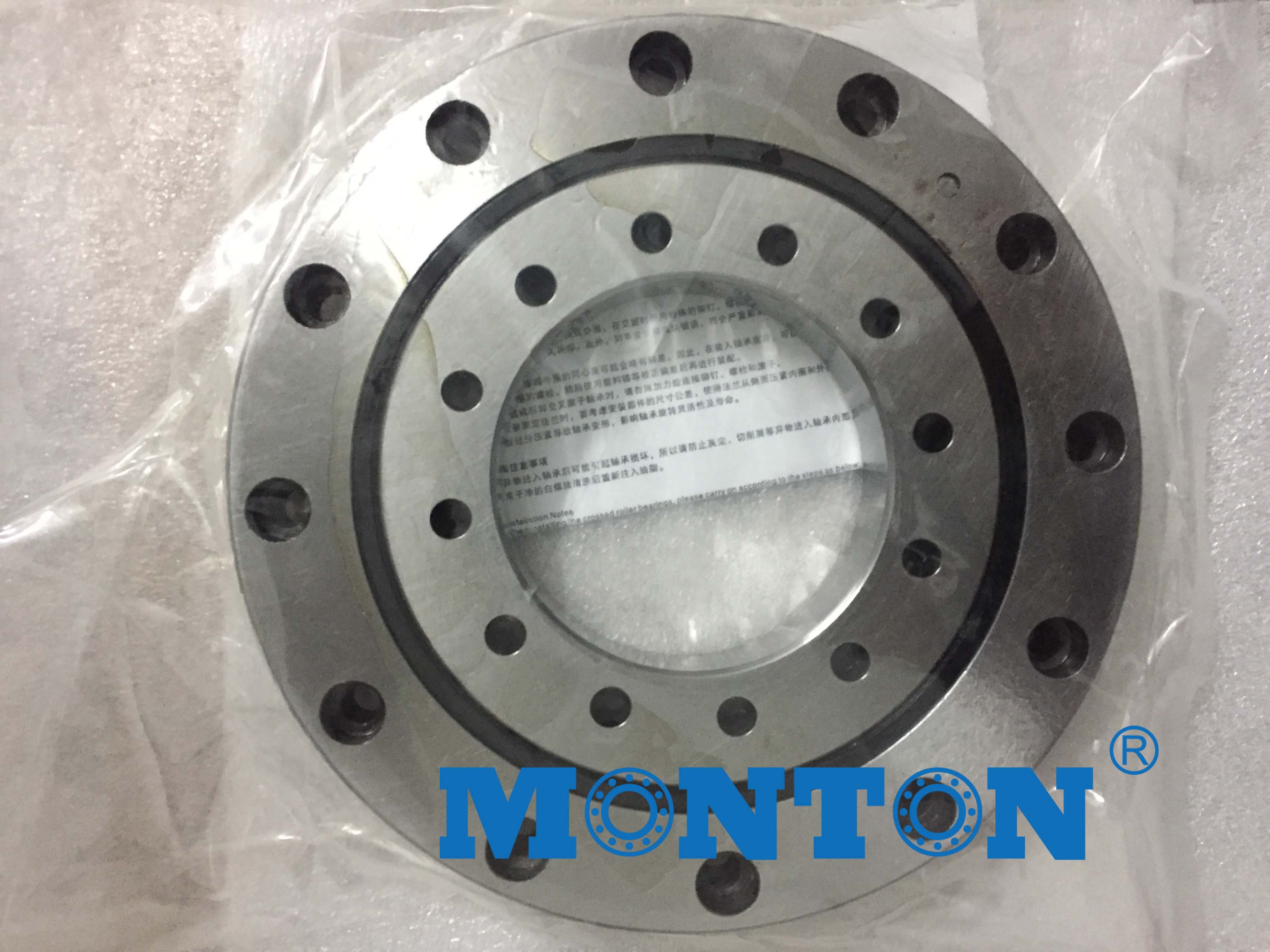

Automated guided vehicle crossed roller  bearings



Mounting holed type, high rigidity crossed roller bearings High rigidity crossed roller bearings feature solid, one-piece construction for high accuracy.

Bearing Type:

Standard crossed roller bearings

Slim crossed roller bearings

Super slim crossed roller bearings



Crossed roller bearings provide more accuracy, rigidity, and weight-bearing capacity for linear motion than other commonly used friction-reducing devices such as ball bearings. And unlike ball bearings, they can support moment loads, radial forces or tilting loads. This lets one crossed roller bearing replace more than one ball bearing, thus saving the space required by ball bearings, lowering the associated material costs.



Crossed roller bearings are preferred for high-precision linear-motion applications with relatively short linear movements that require smooth motion. They are also durable, lasting 150 million cycles, even for linear-motion applications with high levels of acceleration and deceleration when using 2 to 12-mm rollers and 30 to 600-mm lengths.



They can be found in medical and lab equipment, machine tools, semiconductor processing, clean rooms, vacuum environments, material handling, and automation machinery. And as technology becomes more demanding, requiring greater and greater precision, crossed roller bearings will also become more common.



For more AGV slewing bearing Data and drawings ect. , Please feel contact with us.
