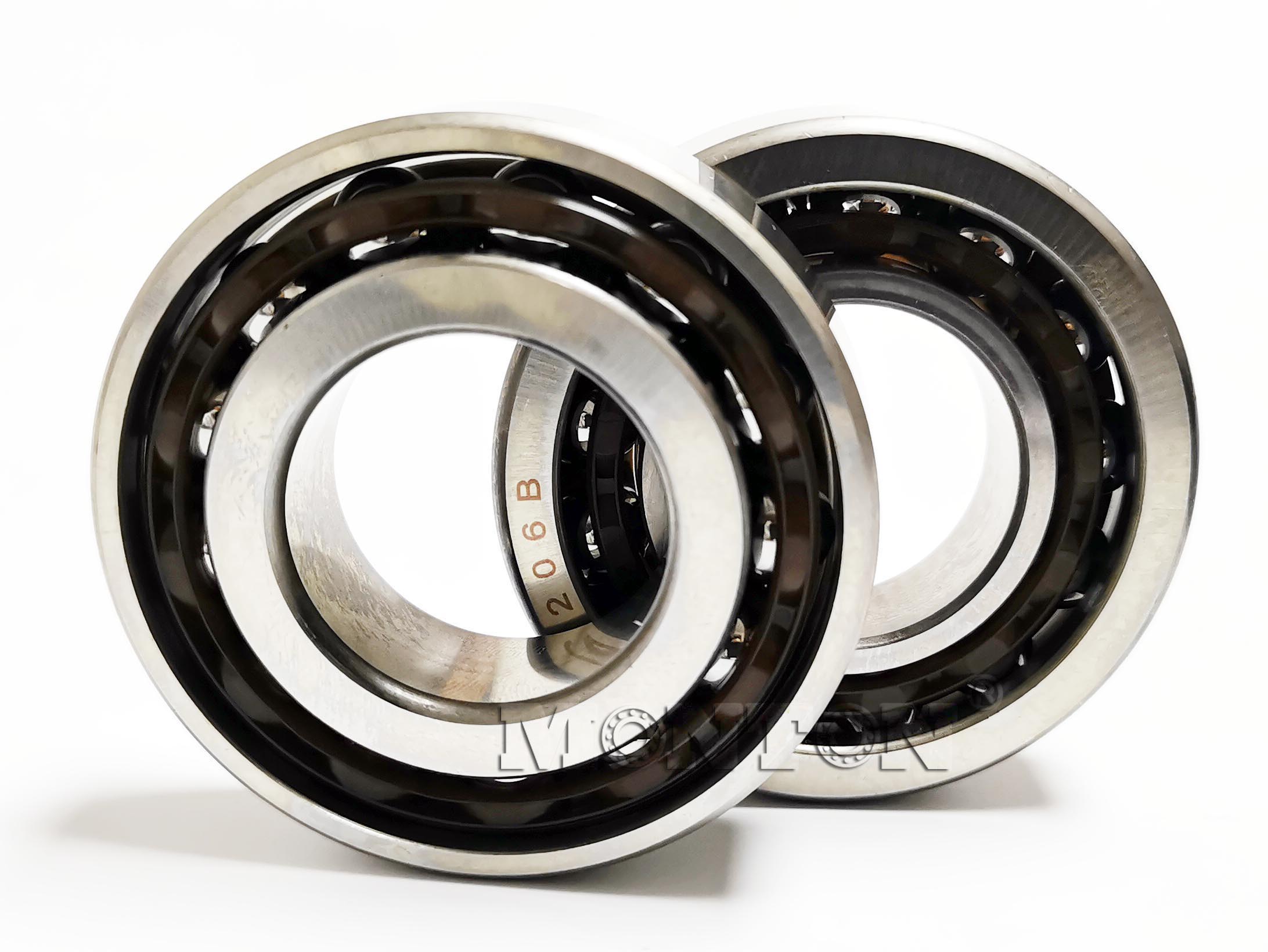

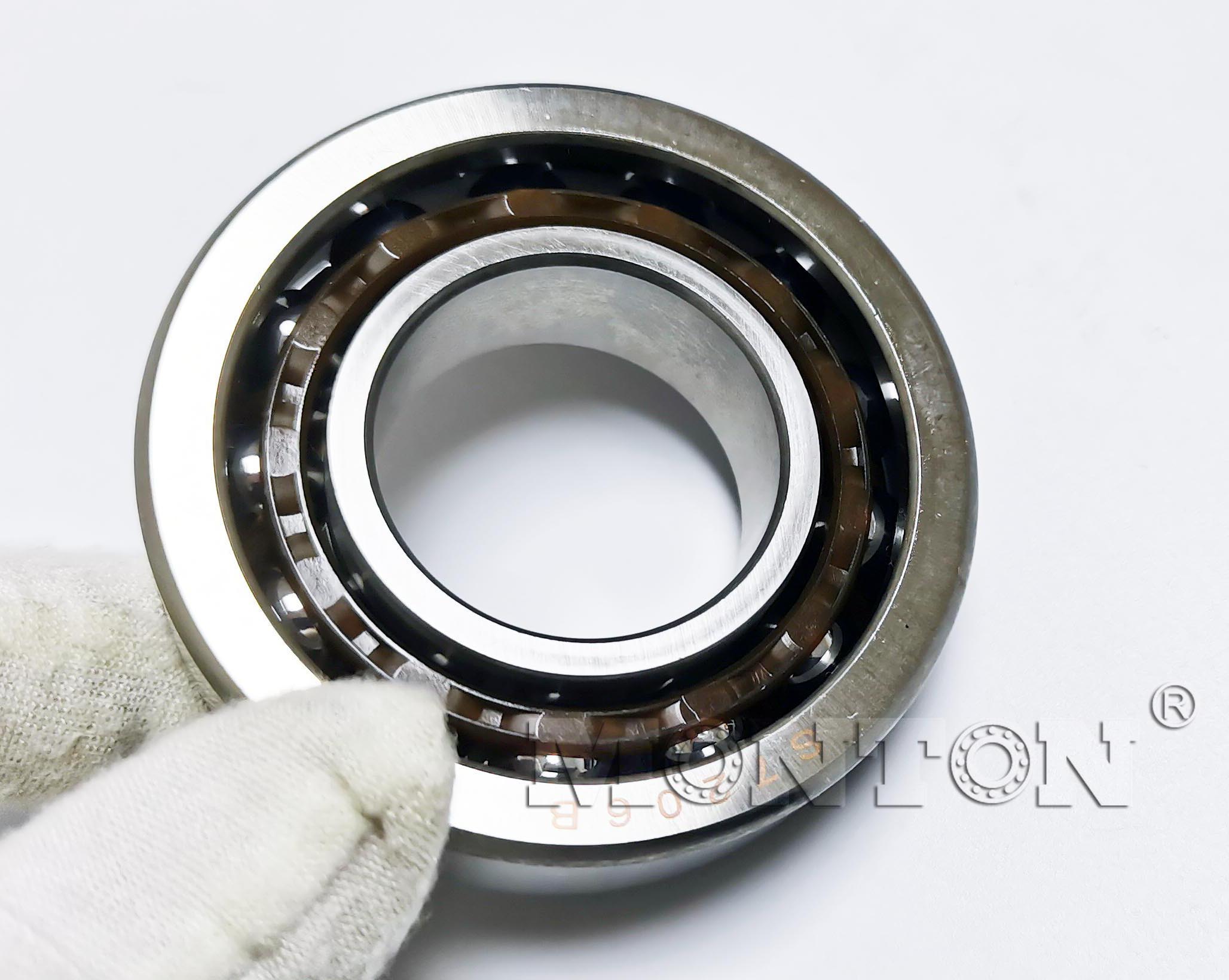

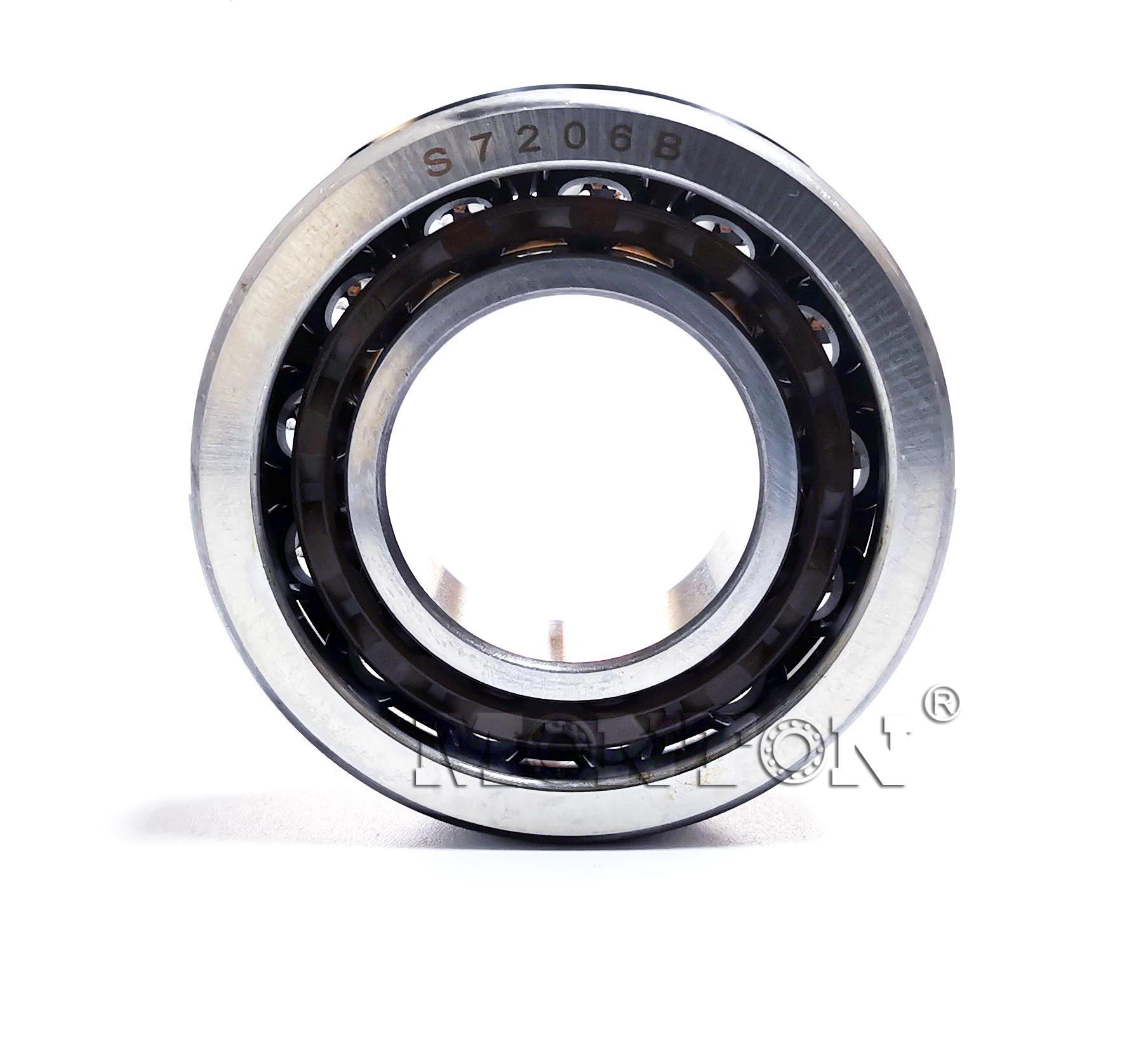

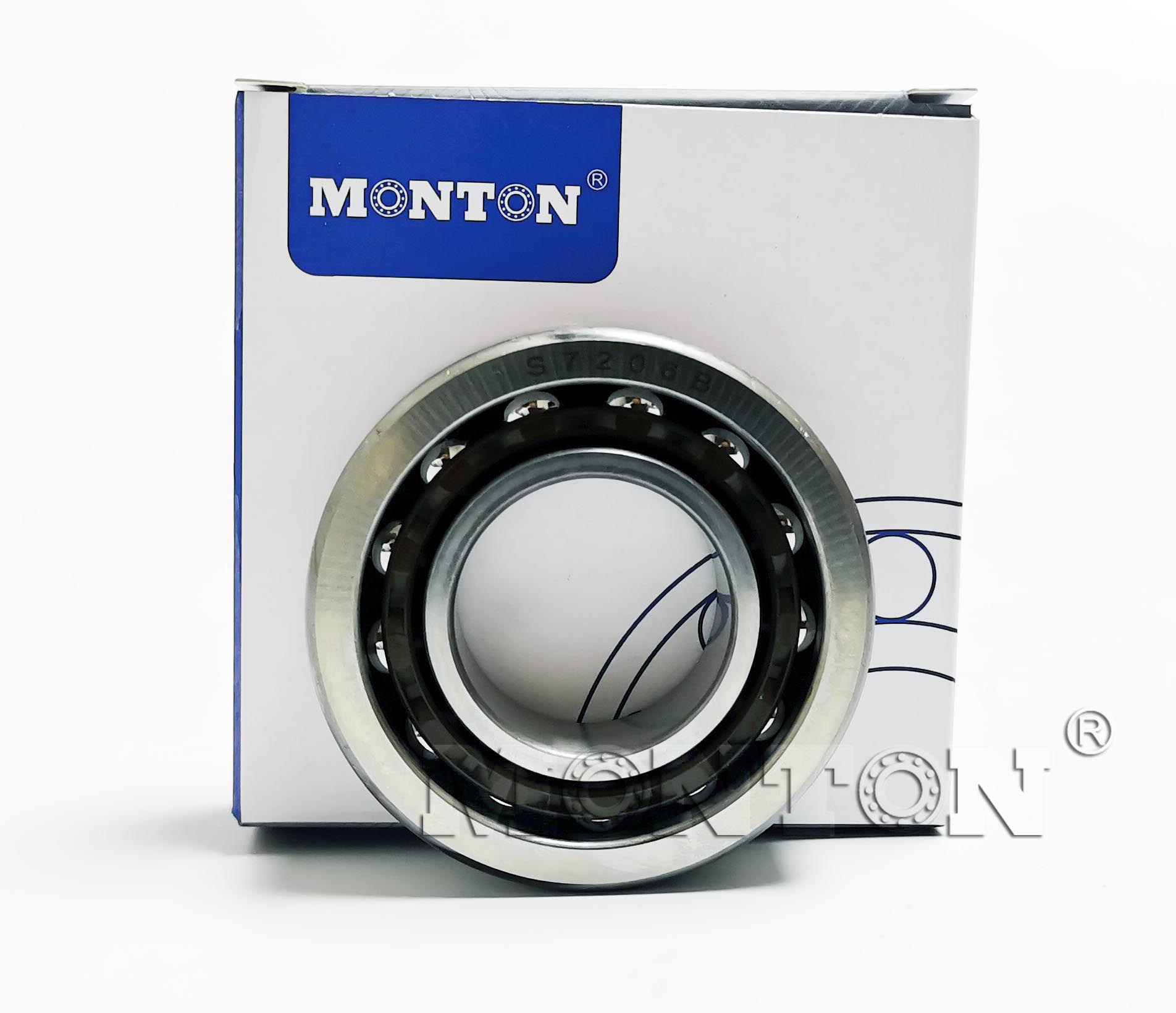

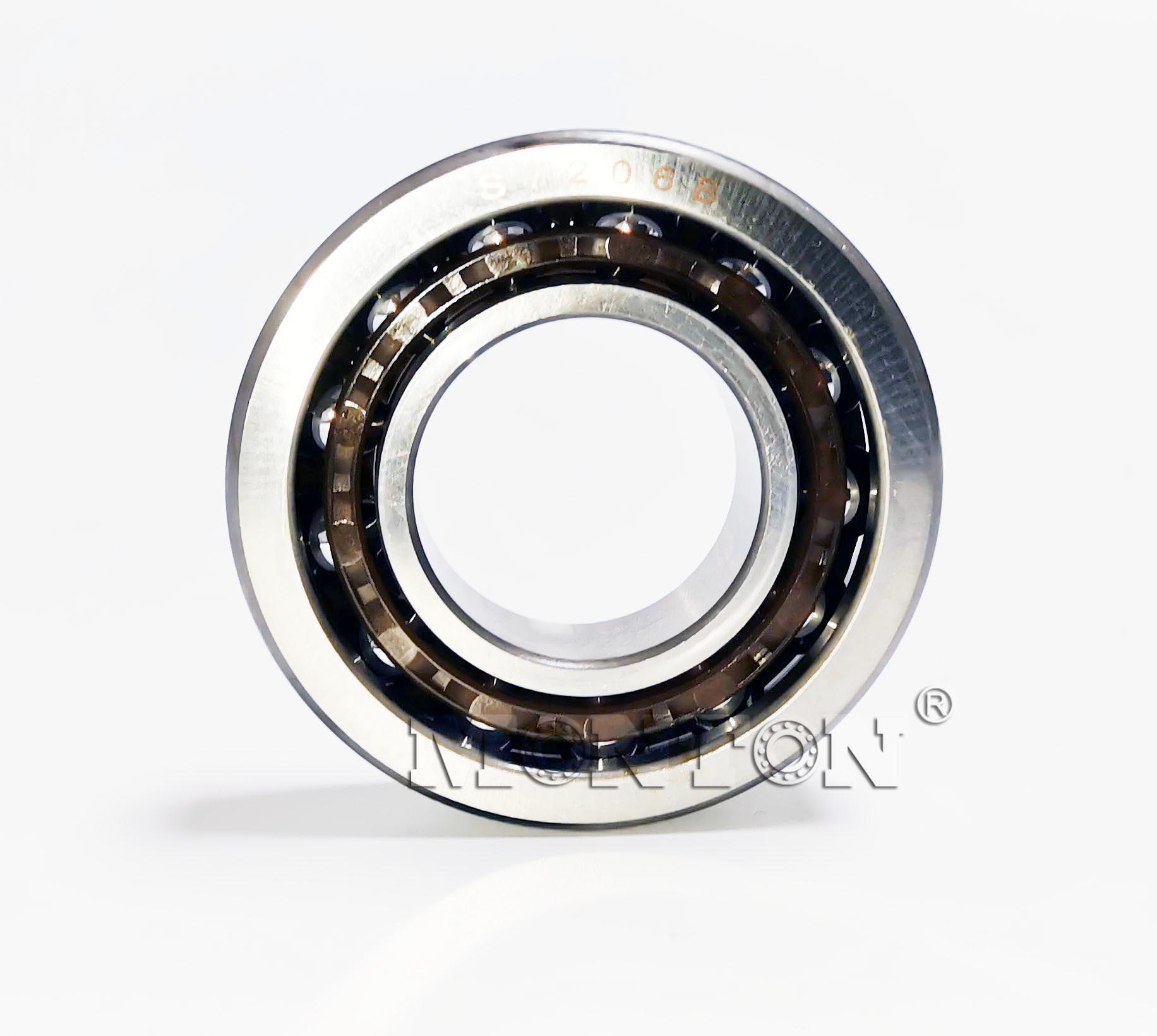

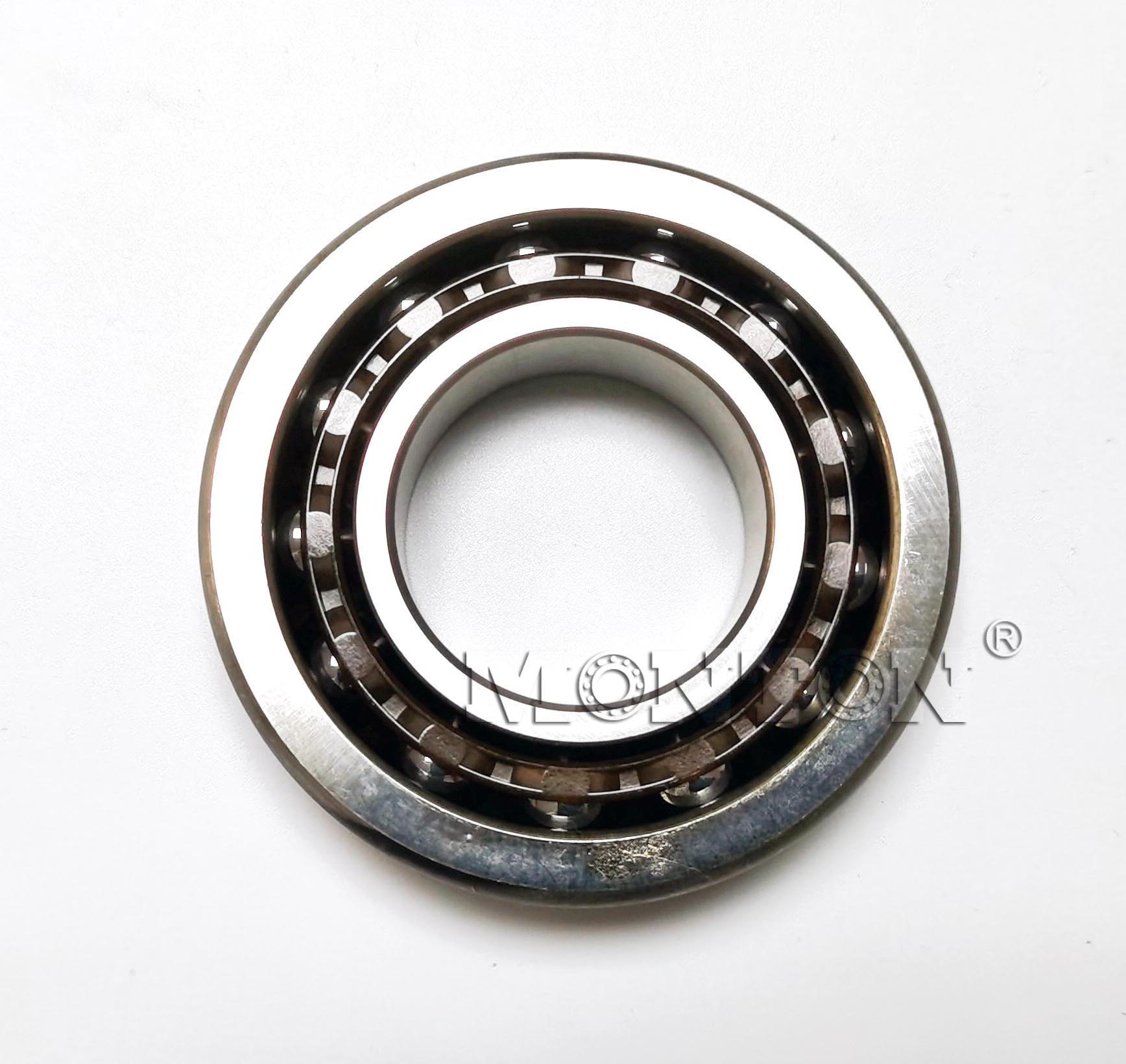

SS7206BTN9A5UA Stainless steel angular contact ball bearing
SS7206BTN9A5UA Stainless steel angular contact ball bearing
SS7206BTN9A5UA Stainless steel angular contact ball bearing
- Bearing:SS7206BTN9A5UA
- d:30mm
- D:62mm
- B:16mm
- Type:Single row
- Cr:22.5KN
- Cor:14.8KN
- Speed:16000RPM
- Weight:0.21KG
- Original:Luoyang
- Brand:China
- Packing:Single box
- Price:Welcome inquiry
SS7206BTN9A5UA Stainless steel angular contact ball bearing
| Inside Ø (mm): | 30 |
| Outside Ø (mm): | 62 |
| Width (mm): | 16 |
| Tolerance for inside-Ø (mm): | 0/-0,01 |
| Tolerance for outside-Ø (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Contact Angle: | 40° |
| Rows Of Balls: | single row |
| Seal: | open |
| Ring Material: | Stainless Steel |
| Cage Material: | Plastic |
| Rolling Element Material: | Stainless Steel |
| Magnetic: | ja |
| Product weight: | 0,2080 kg |
