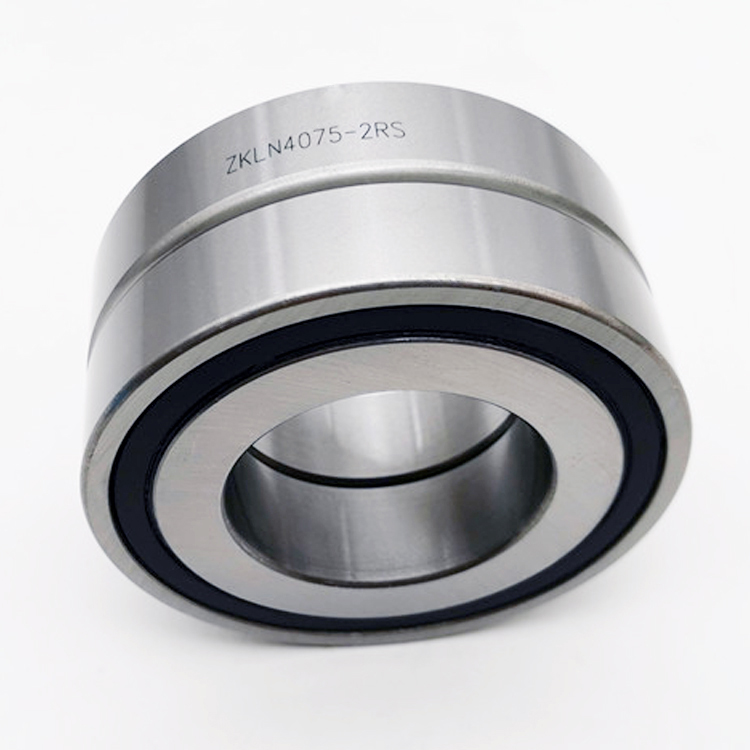

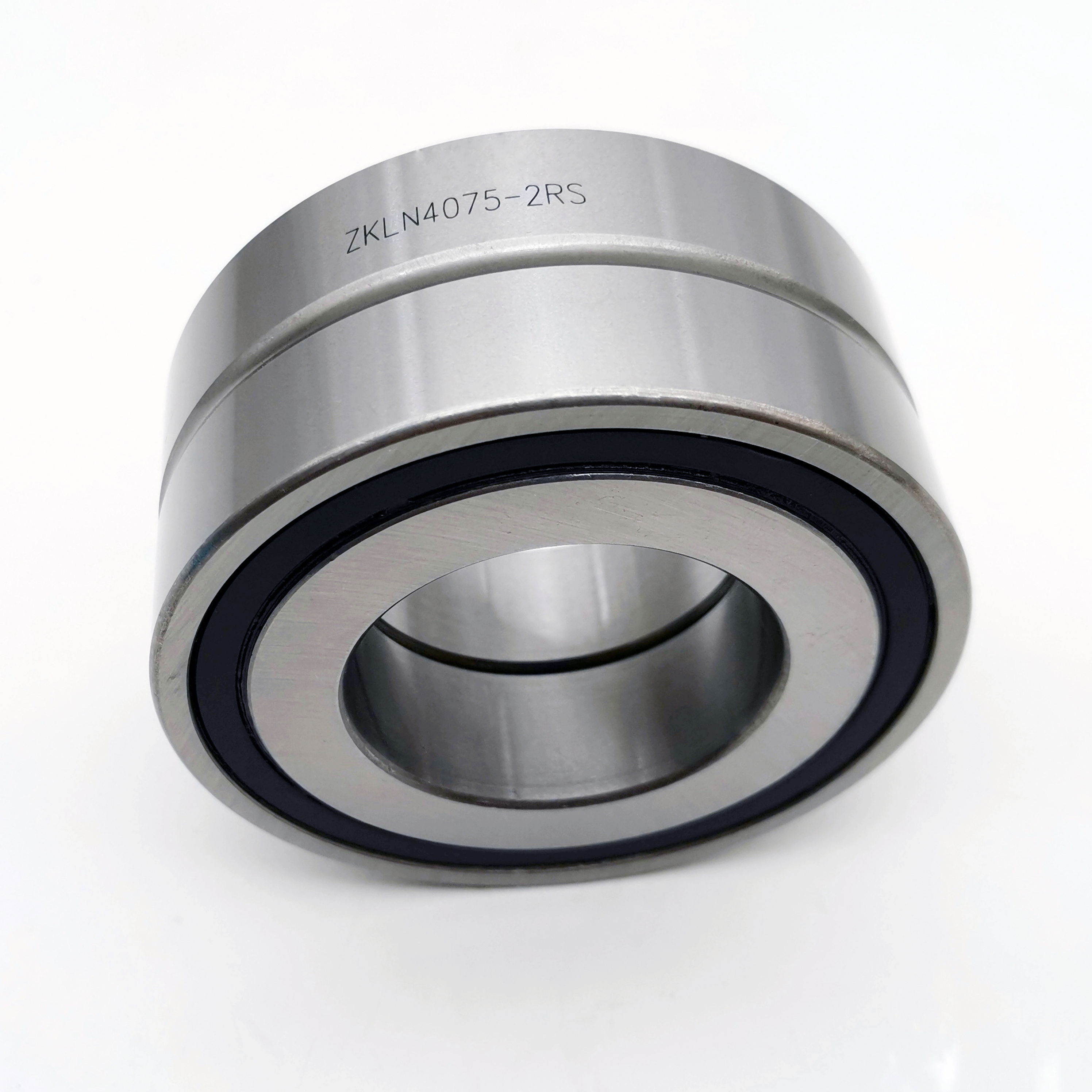

ZKLN Axial angular contact ball bearings
  • ZKLN Axial angular contact ball bearings
  • ZKLN Axial angular contact ball bearings
  • ZKLN Axial angular contact ball bearings
  • ZKLN Axial angular contact ball bearings

ZKLN Axial angular contact ball bearings

Dimension and Parameters
Request Quotation
ZKLN Axial angular contact ball bearings ZKLN Axial angular contact ball bearings
ZKLN1034-2Z
  • Designation
    ZKLN1034-2Z
  • Mass m = kg
    0.1
  • Dimensions
  • d
    10
  • D –0,010
    34
  • B –0,25
    20
  • d1
    21
  • r min.
    0.3
  • r1 min.
    0.6
  • Mounting dimensions
  • Da max.
    28
  • da min.
    14
  • Basic load ratings axial
  • dyn. Ca N
    14700
  • stat. C0a N
    18800
  • Fatigue limit load Cu N
    1110
  • Lim- iting speed nG grease min–1
    14400
  • Thermally safe operating speed nP min–1
    8600
  • Bearing frictional torque MR Nm
    0.06
  • Rigidity axial caL N/µm
    325
  • Tilting rigidity ckL Nm/mrad
    25
  • Mass moment of inertia1) Mm kg · cm2
    0.029
  • Axial runout1) µm
    2
  • Recommended INA precision locknut2)
  • For radial locking
    ZM10
  • Tightening torque4) MA Nm
  • Tightening torque4) MA Nm
    6
  • Required locknut force3) axial N
    4891
