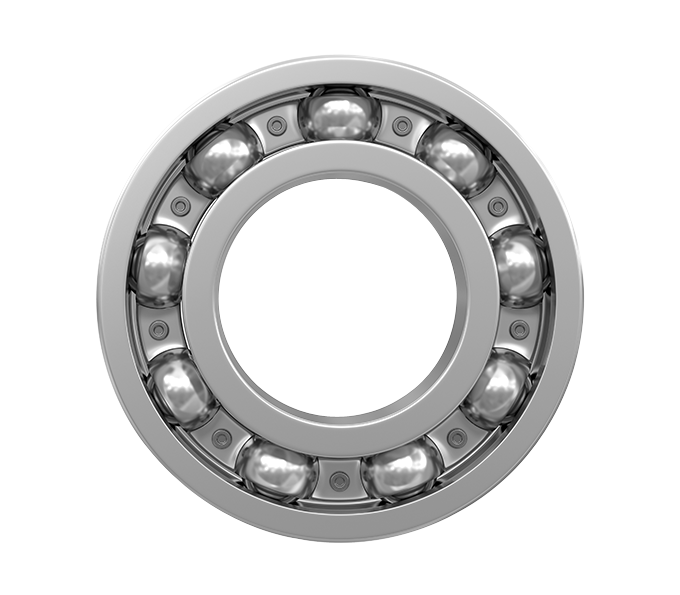

Stainless Steel Deep Groove Ball Bearings
Printable Page
Email This Page
Save To Favorites
|
>>
<<

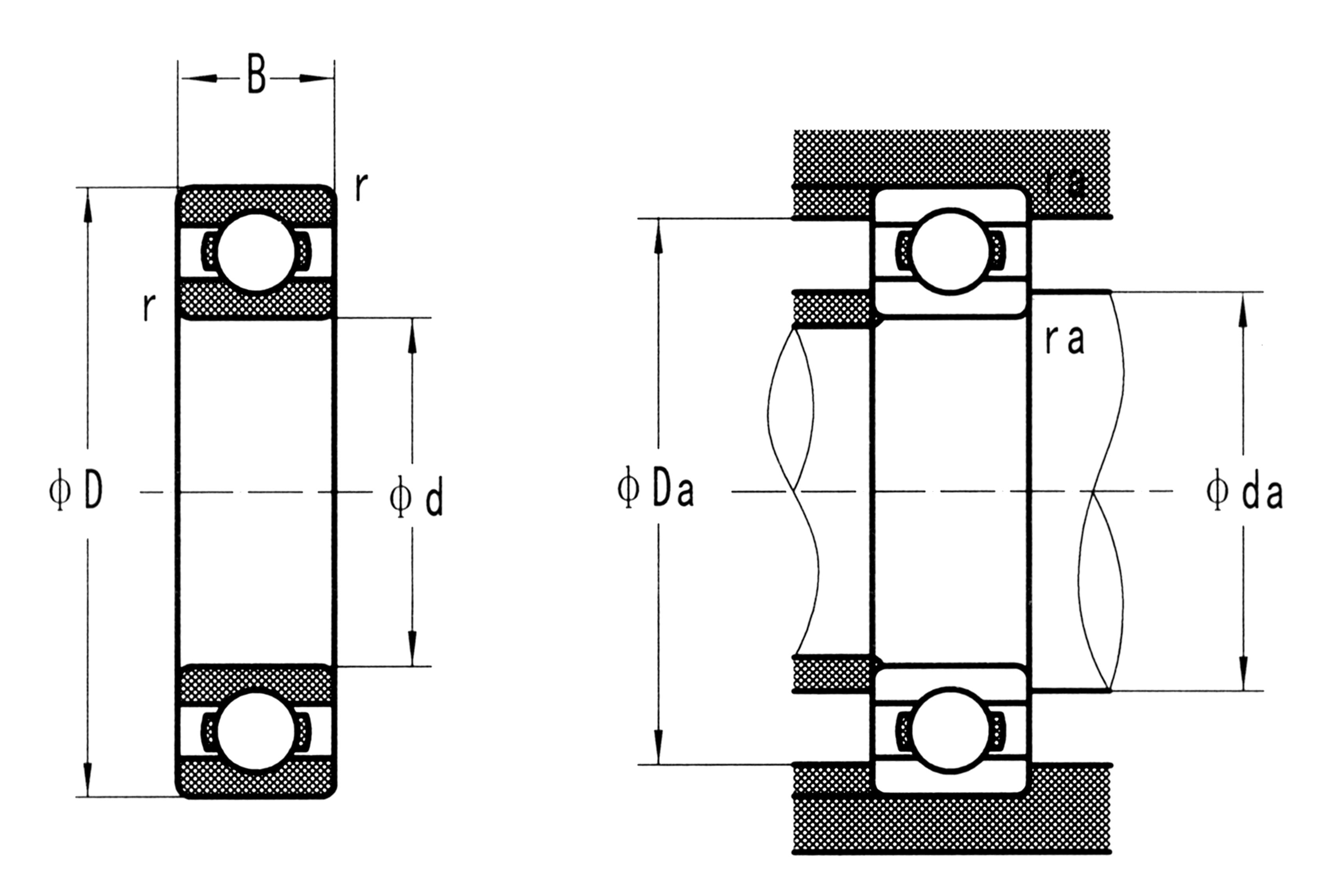

| Select | Download | Inquiry | Bearing Designation | Dimension（mm） | Mounting dimensions | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z（RS）/ZZ（2RS） | d | D | B | rs min | da(min) | da(max) | Da(max) | ra(max) | (Kg) | |||
 |
SS684 | 4 | 9 | 2.5 | 0.1 | 4.8 | / | 8.2 | 0.1 | 0.0006 | ||
|
SS694 | 4 | 11 | 4 | 0.15 | 5.2 | / | 9.8 | 0.15 | 0.0017 | ||
|
SS604 | 4 | 12 | 4 | 0.2 | 5.6 | / | 10.4 | 0.2 | 0.0023 | ||
|
SS624 | 4 | 13 | 5 | 0.2 | 5.6 | / | 11.4 | 0.2 | 0.003 | ||
|
SS634 | 4 | 16 | 5 | 0.3 | 6 | / | 14 | 0.3 | 0.0052 | ||
|
SS685 | 5 | 11 | 3 | 0.15 | 6.2 | / | 9.8 | 0.15 | 0.0012 | ||
|
SS695 | 5 | 13 | 4 | 0.2 | 6.6 | / | 11.4 | 0.2 | 0.0025 | ||
|
SS605 | 5 | 14 | 5 | 0.2 | 6.6 | / | 12.4 | 0.2 | 0.0035 | ||
|
SS625 | 5 | 16 | 5 | 0.3 | 7 | / | 14 | 0.3 | 0.005 | ||
|
SS635 | 5 | 19 | 6 | 0.3 | 7 | / | 17 | 0.3 | 0.0086 | ||
|
SS686 | 6 | 13 | 3.5 | 0.15 | 7.2 | / | 11.8 | 0.15 | 0.0019 | ||
|
SS696 | 6 | 15 | 5 | 0.2 | 7.6 | / | 13.4 | 0.2 | 0.0039 | ||
|
SS606 | 6 | 17 | 6 | 0.3 | 8 | / | 15 | 0.3 | 0.006 | ||
|
SS626 | 6 | 19 | 6 | 0.3 | 8 | / | 17 | 0.3 | 0.0082 | ||
|
SS636 | 6 | 22 | 7 | 0.3 | 8 | / | 20 | 0.3 | 0.014 | ||
|
SS687 | 7 | 14 | 3.5 | 0.15 | 8.2 | / | 12.8 | 0.15 | 0.0022 | ||
|
SS697 | 7 | 17 | 5 | 0.3 | 9 | / | 15 | 0.3 | 0.0053 | ||
|
SS607 | 7 | 19 | 6 | 0.3 | 9 | / | 17 | 0.3 | 0.0077 | ||
|
SS627 | 7 | 22 | 7 | 0.3 | 9 | / | 20 | 0.3 | 0.0127 | ||
|
SS637 | 7 | 26 | 9 | 0.3 | 9 | / | 24 | 0.3 | 0.024 | ||
>>
<<
