Product Description

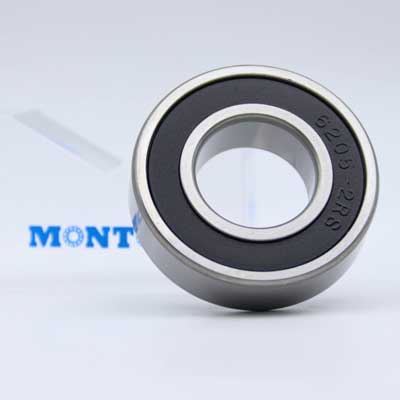

619 Series Deep Groove Ball Bearing

>>

<<

Select	Download	Inquiry	Model	Dimension			Basic load rating		Rated Speed		Dimension				The dimensions of the shoulder and chamfer				Computing coefficients		Weight	Brand
			-	-	-	-	Dynamic	static	Reference speed	limit speed1	d1	D1	D2	r1,2	da	da	Da	ra	-	-	-
			-	d	D	B	C	C0	r/min	r/min	≈	≈	≈	Min	Min	Max	Max	Max	kr	f0	-
			-	mm	mm	mm	kN	kN	-	-	mm	mm	mm	mm	mm	mm	mm	mm	-	-	kg
			619/4-2Z	4	11	4	0.624	0.18	130 000	63 000	6.1	–	9.9	0.15	4.8	5.8	10.2	0.1	0.02	6.4	0.0017	MONTON
			619/4	4	11	4	0.624	0.18	130 000	80 000	6.1	–	9.9	0.15	4.8	–	10.2	0.1	0.02	6.4	0.0017	MONTON
			619/5-2Z	5	13	4	0.884	0.335	110 000	50 000	7.5	–	11.2	0.2	6.4	7.5	11.6	0.2	0.02	11	0.0025	MONTON
			619/5	5	13	4	0.884	0.335	110 000	70 000	7.5	–	11.2	0.2	6.4	–	11.6	0.2	0.02	11	0.0025	MONTON
			619/6-2Z	6	15	5	0.884	0.27	100 000	50 000	8.2	–	13	0.2	7.4	8	13.6	0.2	0.02	6.8	0.0039	MONTON
			619/6	6	15	5	0.884	0.27	100 000	63 000	8.2	–	13	0.2	7.4	–	13.6	0.2	0.02	6.8	0.0039	MONTON
			619/7-2Z	7	17	5	1.06	0.375	90 000	45 000	10.4	–	14.3	0.3	9	9.7	15	0.3	0.02	7.3	0.0049	MONTON
			619/7	7	17	5	1.06	0.375	90 000	56 000	10.4	–	14.3	0.3	9	–	15	0.3	0.02	7.3	0.0049	MONTON
			619/8-2RS1	8	19	6	1.46	0.465	–	24 000	–	–	16.7	0.3	9.5	9.8	17	0.3	0.02	6.6	0.0071	MONTON
			619/8-2Z	8	19	6	1.46	0.465	85 000	43 000	–	–	16.7	0.3	9.5	9.8	17	0.3	0.02	6.6	0.0071	MONTON
			619/8	8	19	6	1.46	0.465	85 000	53 000	10.5	–	16.7	0.3	10	–	17	0.3	0.02	6.6	0.0071	MONTON
			619/9-2Z	9	20	6	2.34	0.98	80 000	40 000	11.6	–	17.5	0.3	11	11.5	18	0.3	0.02	12	0.0076	MONTON
			619/9	9	20	6	2.34	0.98	80 000	50 000	11.6	–	17.5	0.3	11	–	18	0.3	0.02	12	0.0076	MONTON
			61900-2RS1	10	22	6	2.7	1.27	–	20 000	–	–	19.4	0.3	12	12	20	0.3	0.02	14	0.01	MONTON
			61900-2Z	10	22	6	2.7	1.27	70 000	36 000	13.9	–	19.4	0.3	12	12.9	20	0.3	0.02	14	0.01	MONTON
			61900	10	22	6	2.7	1.27	70 000	45 000	13.9	18.2	–	0.3	12	–	20	0.3	0.02	14	0.01	MONTON
			61901-2RS1	12	24	6	2.91	1.46	–	19 000	–	–	21.4	0.3	14	15.2	22	0.3	0.02	15	0.011	MONTON
			61901-2Z	12	24	6	2.91	1.46	67 000	32 000	16	–	21.4	0.3	14	15.8	22	0.3	0.02	15	0.011	MONTON
			61901	12	24	6	2.91	1.46	67 000	40 000	16	20.3	–	0.3	14	–	22	0.3	0.02	15	0.011	MONTON
			61902-2RS1	15	28	7	4.36	2.24	–	16 000	18.8	–	25.3	0.3	17	18.3	26	0.3	0.02	14	0.016	MONTON
