Open Type Four Contact thin section ball bearing

Catalogue

Advanced Search

Printable Page Email

Email

Email This Page

Save To Favorites

Save To Favorites

Product Description

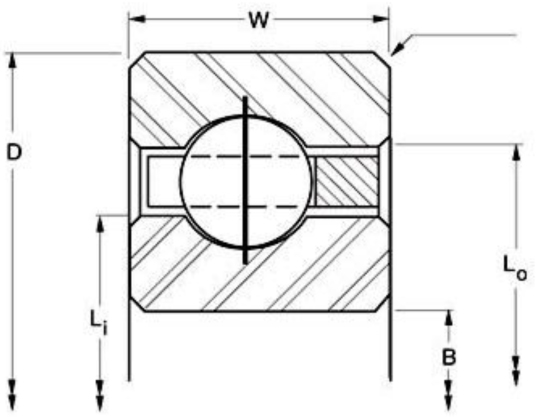

Open Type Four Contact thin section ball bearing

>>

<<

Select	Download	Inquiry	Bearing Number	Dimensions in Inches				Capacities（lbs）						Wight（lbs）
				Bore	Outside Dia.	L1	L2	Radial		axial		Torque（in-lbs）
				Bore	Outside Dia.	L1	L2	Dynamic	Static	Dynamic	Static	Dynamic	Static
			KAA10XL0	1.000	1.375	1.140	1.235	290	247	730	370	170	110	0.026
			KAA15XL0	1.500	1.875	1.640	1.735	400	296	1.000	460	340	187	0.039
			KAA17XL0	1.750	2.125	1.890	1.985	460	319	1.140	500	440	232	0.045
			KA020XP0	2.000	2.500	2.186	2.314	680	514	1.710	790	770	434	0.10
			KA025XP0	2.500	3.000	2.686	2.814	830	583	2.090	910	1.150	601	0.13
			KA030XP0	3.000	3.500	3.186	3.314	990	643	2.470	1.010	1.600	785	0.15
			KA035XP0	3.500	4.000	3.686	3.814	1.140	701	2.850	1.110	2.130	986	0.18
			KA040XP0	4.000	4.500	4.186	4.314	1.290	756	3.220	1.210	2.740	1.205	0.19
			KA042XP0	4.250	4.750	4.436	4.564	1.370	783	3.410	1.260	3.070	1.321	0.20
			KA045XP0	4.500	5.000	4.686	4.814	1.440	809	3.600	1.310	3.420	1.441	0.22
			KA047XP0	4.750	5.250	4.936	5.064	1.520	834	3.790	1.350	3.790	1.565	0.23
			KA050XP0	5.000	5.500	5.186	5.314	1.590	859	3.980	1.400	4.180	1.693	0.24
			KA055XP0	5.500	6.000	5.686	5.814	1.750	908	4.360	1.480	5.020	1.959	0.25
			KA060XP0	6.000	6.500	6.186	6.314	1.900	955	4.740	1.570	5.930	2.240	0.28
			KA065XP0	6.500	7.000	6.686	6.814	2.050	1.001	5.120	1.650	6.910	2.535	0.30
			KA070XP0	7.000	7.500	7.186	7.314	2.200	1.046	5.500	1.730	7.980	2.844	0.31
			KA075XP0	7.500	8.000	7.686	7.814	2.350	1.089	5.880	1.810	9.120	3.165	0.34
			KA080XP0	8.000	8.500	8.186	8.314	2.500	1.131	6.260	1.890	10.330	3.499	0.38
			KA090XP0	9.000	9.500	9.186	9.314	2.810	1.212	7.020	2.040	12.990	4.204	0.44
			KA100XP0	10.000	10.500	10.186	10.314	3.110	1.289	7.780	2.180	15.940	4.956	0.50
