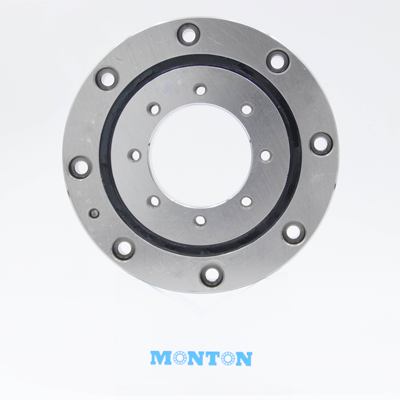

CRBF Super Slim Crossed Roller Bearings with mounting hole have an ultra-slim 5 mm bearing widthit's easy bolt-on mounting eliminates complex mounting procedures.Mounting Holed Type Super Slim Crossed Roller Bearings can be mounted directly to the mounting surface. No housing or pressure plate required.



CRBF Super Slim Crossed Roller Bearings with mounting hole have an ultra-slim 5 mm bearing widthit's easy bolt-on mounting eliminates complex mounting procedures.

Mounting Holed Type Super Slim Crossed Roller Bearings can be mounted directly to the mounting surface. No housing or pressure plate required.


Mounting:

The shoulder height diameters (da and Da) which are related to mounting must meet the values shown in the dimension tables.When used with a housing, it is recommended to use a slight interference fit adjusted to the actual measured dimensions of the outer and inner ring. In addition, the depth of the housing bore is recommended to be equal to or larger than the bearing width. Mounting Holed Type Super Slim Crossed Roller Bearings have a plug hole for inserting cylindrical rollers. When mounting the bearings, position the plug away from the maximum load. The plug is located by the pin on the side.






>>
<<
SelectDownloadInquiryShaft dia. mmIdentification numberBoundary dimensions mmMounting holes mmMounting dimensions mmBasic dynamic load rating C NBasic static load rating C 0 NMass (Ref.) kg
Open TypeSealed TypedDBr 1minr 2minPCD1Inner ring Mounting holesPCD2Outer ring Mounting holesd aDa
Download PDF 10 CRBF108AT CRBF108ATUU 10 52 8 0.3 0.3 16 4-M3 through 42 6-φ3.4 through φ6.5 counter bore depth 3.3 24 31 2910 2430 0.12
Download PDF 20 CRBF2012AT CRBF2012ATUU 20 70 12 0.3 0.3 28 6-M3 through 57 6-φ3.4 through φ6.5 counter bore depth 3.3 36.5 48.5 7600 8370 0.31
Download PDF 25 CRBF2512AT CRBF2512ATUU 25 80 12 0.6 0.6 35 6-M3 through 67 6-φ3.4 through φ6.5 counter bore depth 3.3 46.5 58.5 8610 10600 0.4
Download PDF 35 CRBF3515AT CRBF3515ATUU 35 95 15 0.6 0.6 45 8-M4 through 83 8-φ4.5 through φ8 counter bore depth 4.4 56 74 17300 20900 0.66
Download PDF 55 CRBF5515AT CRBF5515ATUU 55 120 15 0.6 0.6 65 8-M5 through 105 8-φ5.5 through φ9.5 counter bore depth 5.4 76 94 20100 27700 0.96
Download PDF 80 CRBF8022AT CRBF8022ATUU 80 165 22 0.6 1 97 10-M5 through 10- φ 5.5 through φ 9.5 counter bore 148 10-φ5.5 through φ9.5 counter bore depth 5.4 107 137 51100 72000 2.63
Download PDF 80 CRBF8022A CRBF8022AUU 80 165 22 0.6 1 97 10-M5 through 10- φ 5.5 through φ 9.5 counter bore 148 10-φ5.5 through φ9.5 counter bore depth 5.4 107 137 51100 72000 2.6
Download PDF 80 CRBF8022AD CRBF8022ADUU 80 165 22 0.6 1 97 10-M5 through 10- φ 5.5 through φ 9.5 counter bore 148 10-φ5.5 through φ9.5 counter bore depth 5.4 107 137 51100 72000 2.6
Download PDF 90 CRBF9025AT CRBF9025ATUU 90 210 25 1.5 1.5 112 12-M8 through 187 12-φ9 through φ14 counter bore depth 12 132 168 73400 108000 4.83
Download PDF 90 CRBF9025A CRBF9025AUU 90 210 25 1.5 1.5 112 12- φ 9 through φ 14 counter bore depth 12 187 12-φ9 through φ14 counter bore depth 12 132 168 73400 108000 4.67
Download PDF 90 CRBF9025AD CRBF9025ADUU 90 210 25 1.5 1.5 112 12- φ 9 through φ 14 counter bore depth 12 187 12-φ9 through φ14 counter bore depth 12 132 168 73400 108000 4.67
Download PDF 115 CRBF11528AT CRBF11528ATUU 115 240 28 1.5 1.5 139 12-M8 through 12- φ 9 through φ 14 counter bore de 217 12-φ9 through φ14 counter bore depth 13.5 162 198 84300 138000 6.81
Download PDF 115 CRBF11528A CRBF11528AUU 115 240 28 1.5 1.5 139 12-M8 through 12- φ 9 through φ 14 counter bore de 217 12-φ9 through φ14 counter bore depth 13.5 162 198 84300 138000 6.63
Download PDF 115 CRBF11528AD CRBF11528ADUU 115 240 28 1.5 1.5 139 12-M8 through 12- φ 9 through φ 14 counter bore de 217 12-φ9 through φ14 counter bore depth 13.5 162 198 84300 138000 6.63
>>
<<
