6700 Series
Printable Page
Email This Page
Save To Favorites
|
>>
<<

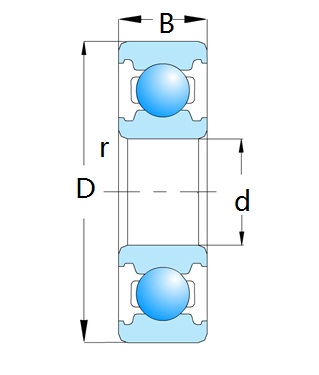

| Select | Download | Inquiry | Bearing Designation | Dimension（mm） | Basic load ratings (kN) | Speed ratings(rpm) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Kg) | ||||
 |
6700 | 10 | 15 | 3 | 0.1 | 1.01 | 0.555 | 3600 | 4200 | 0.0015 | ||
|
6701 | 12 | 18 | 4 | 0.2 | 0.93 | 0.53 | 8300 | 9500 | 0.002 | ||
|
6702 | 15 | 21 | 4 | 0.2 | 0.94 | 0.585 | 6600 | 7600 | 0.0025 | ||
|
6703 | 17 | 23 | 4 | 0.2 | 1 | 0.66 | 5000 | 6700 | 0.0025 | ||
|
6704 | 20 | 27 | 4 | 0.2 | 1.04 | 0.73 | 5000 | 5700 | 0.0045 | ||
|
6705 | 25 | 32 | 4 | 0.2 | 1.1 | 0.84 | 4000 | 4600 | 0.005 | ||
|
6706 | 30 | 37 | 4 | 0.2 | 1.14 | 0.95 | 3300 | 3800 | 0.006 | ||
>>
<<
