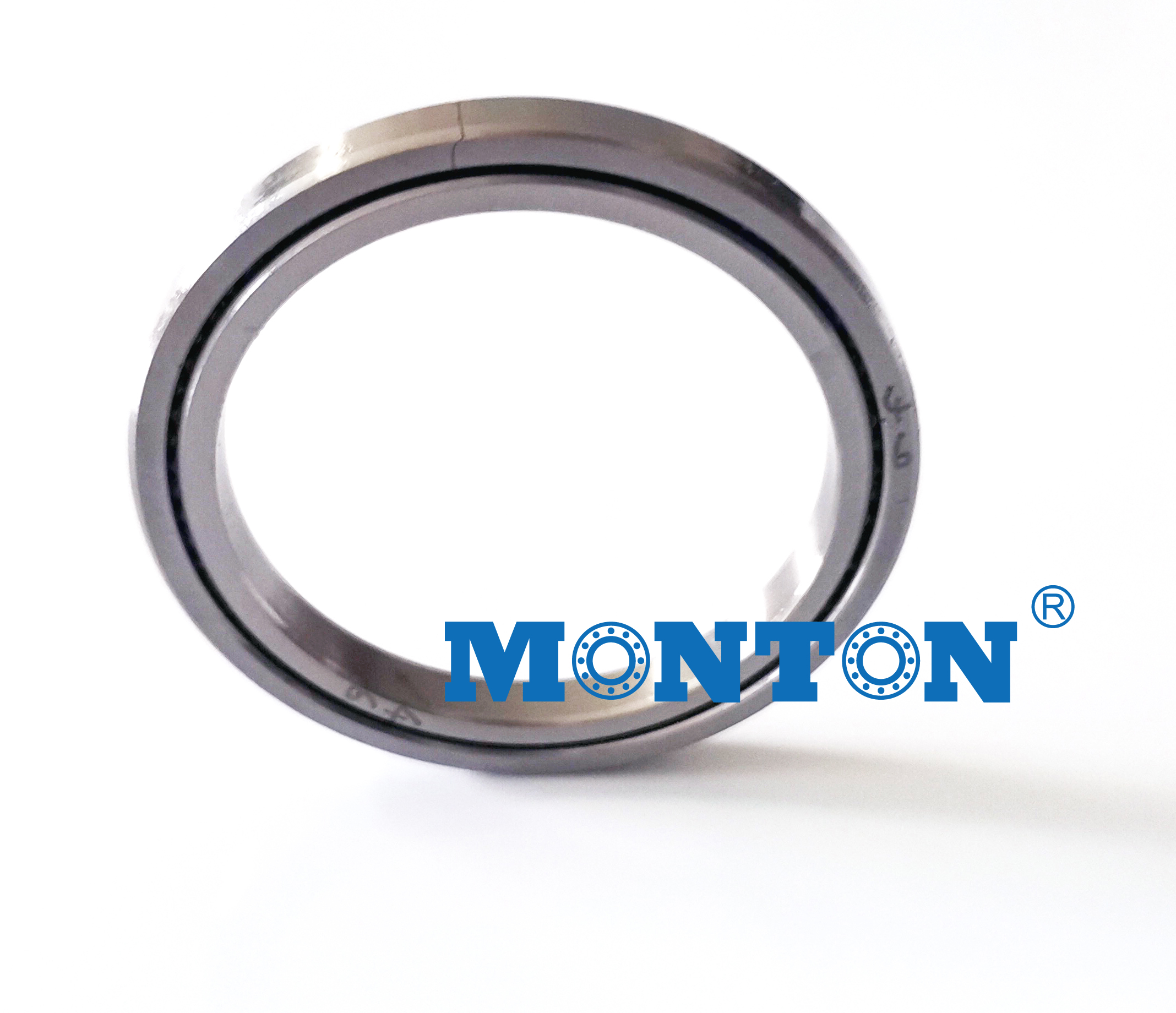

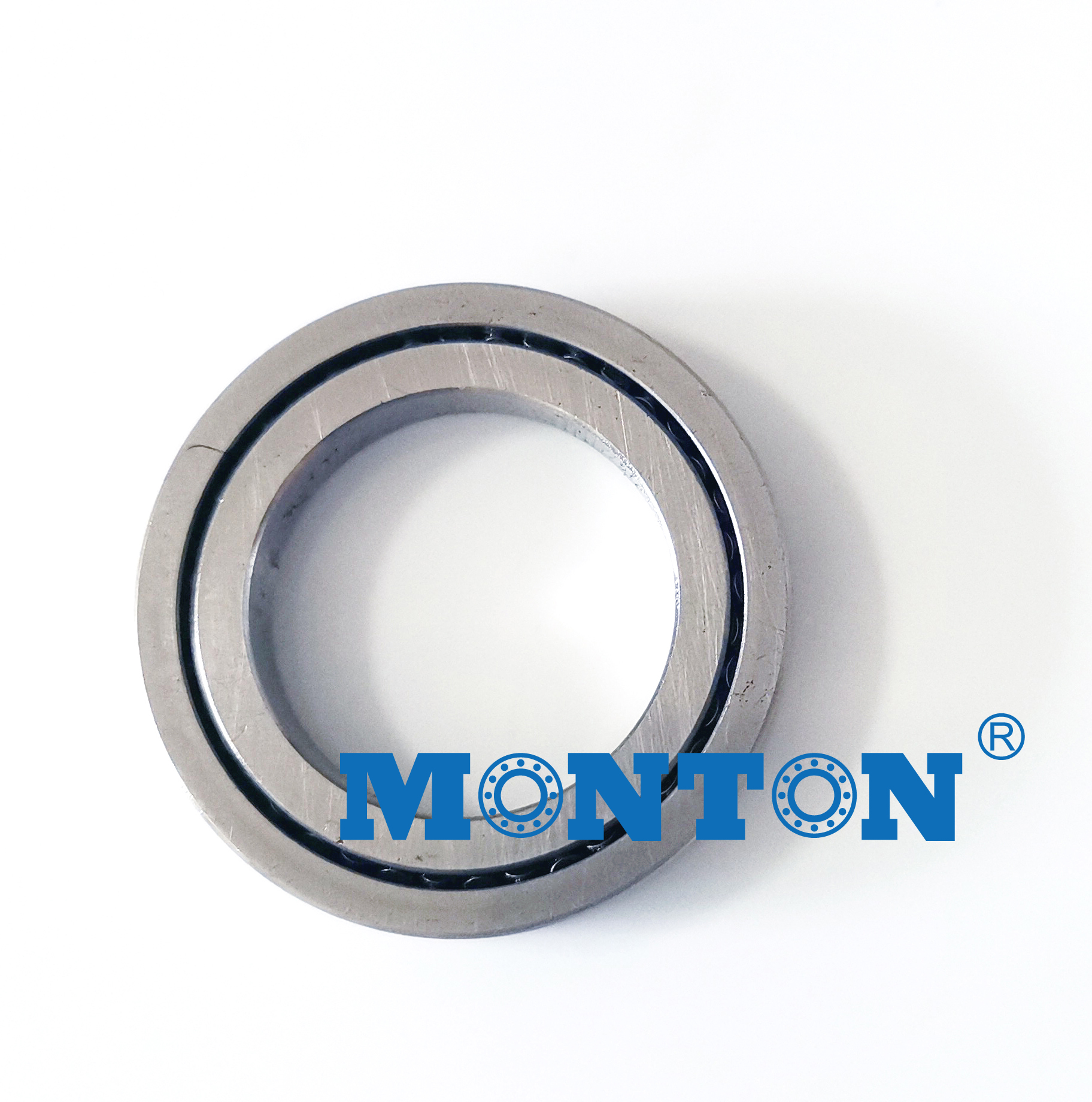

Features of Super Slim Type Crossed Roller Bearing CRBT

The world's thinnest roller type! Very low cross sectional height of 5.5 mm.

The cross sectional height is reduced by 69% in comparison with CRBS, which was the thinnest before (bearing bore diameter 50 mm). The width is also as small as 5 mm and the cross sectional area is reduced by 43% in comparison with conventional products.

Significant weight saving by 38% in comparison with conventional types was realizedWeight reduction is thoroughly pursued. The mass ratio is 0.38 and significant weight saving was realized in comparison with conventional slim type CRBS (bearing bore diameter 50 mm).

Structure and Features

1. Ultra-Slim and Ultra-Small!

These Crossed Roller Bearings are ultra-slim and small with a 10mm bearing bore, 21mm outside diameter, and 5mm bearing width.

2. High Rigidity and a Compact Size!

In Crossed Roller Bearings, the orthogonal array of rollers reduces the cross sectional area of rear-mounted 45° contact angle single-row roller bearings or ball bearings by half, creating a compact structure.

Even though they are more compact, the rigidity is 3 to 4 times greater than double-row angular contact ball bearings.


What are Crossed Roller Bearings?

Crossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner

and outer rings. The orthogonal array of the rollers allows the bearing to handle complex loads simultaneously from any direction, which makes assembly possible without needing to worry about load direction.

Compact Hand Robot

Crossed Roller Bearings feature high rotational accuracy and high rigidity which minimizes deflection, making them ideal for the

swivel parts of hand robots, that require accurate positioning motion.

Compact Surveillance Camera

Crossed Roller Bearings can receive complex loads from various directions, making them ideal bearings for supporting surveillance

cameras which are in constant 24-hour operation.





>>
<<
SelectDownloadInquiryShaft dia. (mm)Identification numberBoundary dimensions (mm)Mounting dimensions (mm)Basic dynamic load rating Basic static load ratingMass (Ref.) g
dDBrmindaDaC (N)C0 (N)
Download PDF 10 CRBT105A 10 21 5 0.15 12.5 17 1120 811 9
Download PDF 15 CRBT155A 15 26 5 0.15 17.5 22 1320 1110 11.9
Download PDF 20 CRBT205A 20 31 5 0.15 22.5 27 1400 1290 14.8
Download PDF 30 CRBT305A 30 41 5 0.15 32.5 37 1770 1970 20.7
Download PDF 40 CRBT405A 40 51 5 0.15 42.5 47 2200 2520 26.5
Download PDF 50 CRBT505A 50 61 5 0.15 52.5 57 2280 3200 32.3
Download PDF 60 CRBT605A 60 71 5 0.15 62.5 67 2.63 4.09 38
Download PDF 70 CRBT705A 70 81 5 0.15 72.5 77 2.81 4.68 44
Download PDF 80 CRBT805A 80 91 5 0.15 82.5 87 3.05 5.43 50
>>
<<
