CRBFT Super Slim Crossed Roller Bearings with mounting hole
Printable Page
Email This Page
Save To Favorites
|

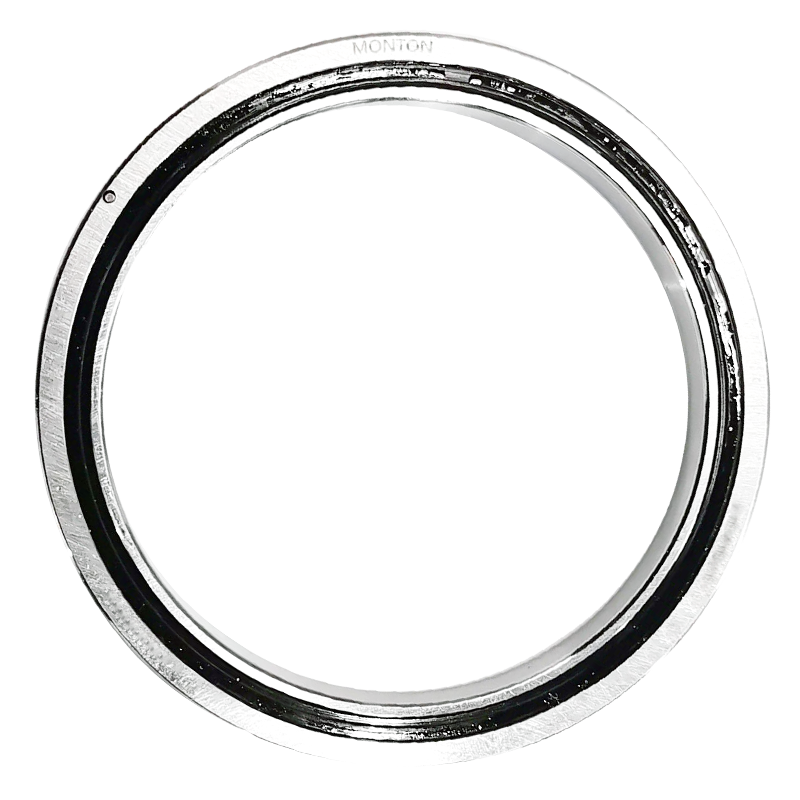

CRBFT Super Slim Crossed Roller Bearings with mounting hole have an ultra-slim 5 mm bearing width，it's easy bolt-on mounting eliminates complex mounting procedures.
Mounting Holed Type Super Slim Crossed Roller Bearings can be mounted directly to the mounting surface. No housing or pressure plate required.
Mounting:
· The shoulder height diameters (da and Da) which are related to mounting must meet the values shown in the dimension tables.
When used with a housing, it is recommended to use a slight interference fit adjusted to the actual measured dimensions of the outer and inner ring. In addition, the depth of the housing bore is recommended to be equal to or larger than the bearing
width.
· Mounting Holed Type Super Slim Crossed Roller Bearings have a plug hole for inserting cylindrical rollers. When mounting the bearings, position the plug away from the maximum load. The plug is located by the pin on the side.
| Select | Download | Inquiry | Bearing | Dimensions mm | r(1)min | Mounting holes | Mounting dimensions mm | Basic dynamic load rating | Basic static load rating | Mass | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | PCD1 | Inner ring Mounting holes | PCD2 | Outer ring Mounting holes | da | Da | C N | Co N | g | |||||
 |
CRBTF 105 AT | 10 | 43 | 5 | 0.15 | 16 | 6-M2.5 through | 35 | 6-φ 2.9 through φ5.5 Counterbore depth 2.8 | 21.5 | 28 | 1 500 | 1 410 | 46 | ||
|
CRBTF 205 AT | 20 | 53 | 5 | 0.15 | 26 | 6-M2.5 through | 45 | 6-φ 2.9 through φ5.5 Counterbore depth 2.8 | 31.5 | 38 | 1 890 | 2 150 | 66 | ||
|
CRBTF 305 AT | 30 | 63 | 5 | 0.15 | 36 | 8-M2.5 through | 55 | 8-φ 2.9 through φ5.5 Counterbore depth 2.8 | 41.5 | 47.5 | 2 140 | 2 750 | 83 | ||
|
CRBTF 405 AT | 40 | 73 | 5 | 0.155 | 46 | 8-M2.5 through | 65 | 8-φ 2.9 through φ5.5 Counterbore depth 2.8 | 51.5 | 58 | 2 440 | 3 490 | 103 | ||
